Specifications
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
| LED Indicators | One Link/Act LED indicator per Gigabit port |
| One Power LED indicator per device | |

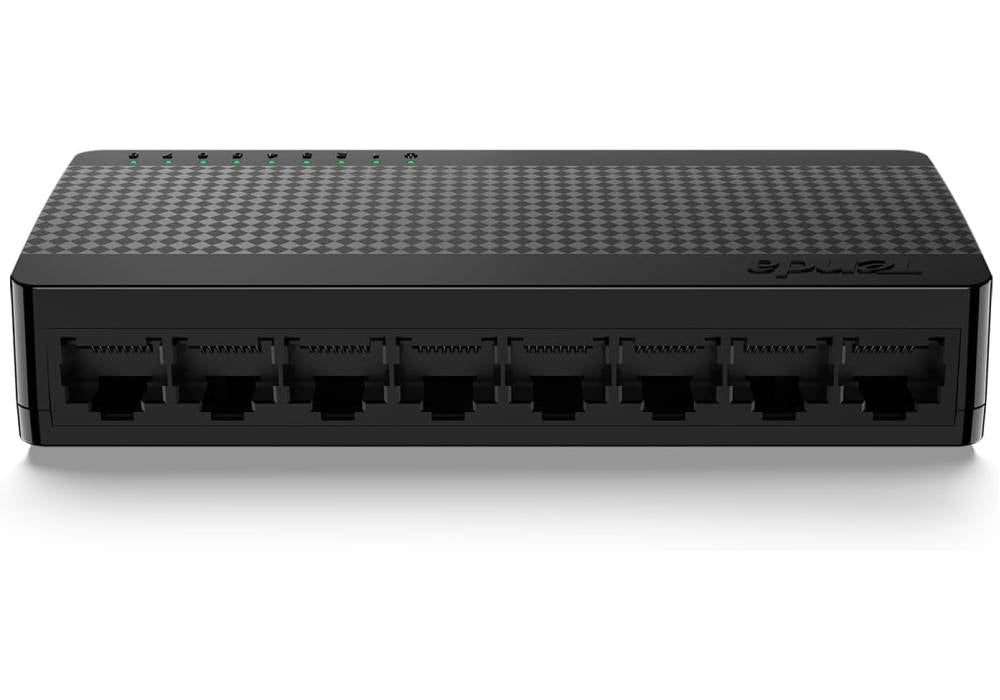

| Interfaces | 8 x 10/100/1000Base-T Ethernet ports |
| Transmission Media | Ethernet: CAT3 UTP or better |
| Fast Ethernet: CAT5 UTP or better | |
| Gigabit Ethernet: CAT5e UTP or better | |
| Dimensions | 124mm x 59mm x 23mm |
| Material | Plastic |
| Forwarding Mode | Store-and-forward |
| Switch Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Buffer | 4Mb |
| MAC Address Table | 8K |
| Jumbo Frame | 15K |
| Power | Input: 100-240V AC 50/60Hz |
| Output: 5.0V 0.6A (External Power Adapter) | |
| Power Consumption: Max < 3W | |
| Mounting | Desktop: Supported |
| Wall: Supported | |
| Rack: Not Supported | |
| Environment | Operating Temperature: 0°C - 45°C |
| Storage Temperature: -40°C - 70°C | |
| Operating Humidity: 10% - 90% RH, non-condensing | |
| Storage Humidity: 5% - 90% RH, non-condensing | |
| Certification | Same as Environment specifications above |
| MAC Address Learning | Auto-learning and Auto-updating |
| Functions | Plug-and-play |
