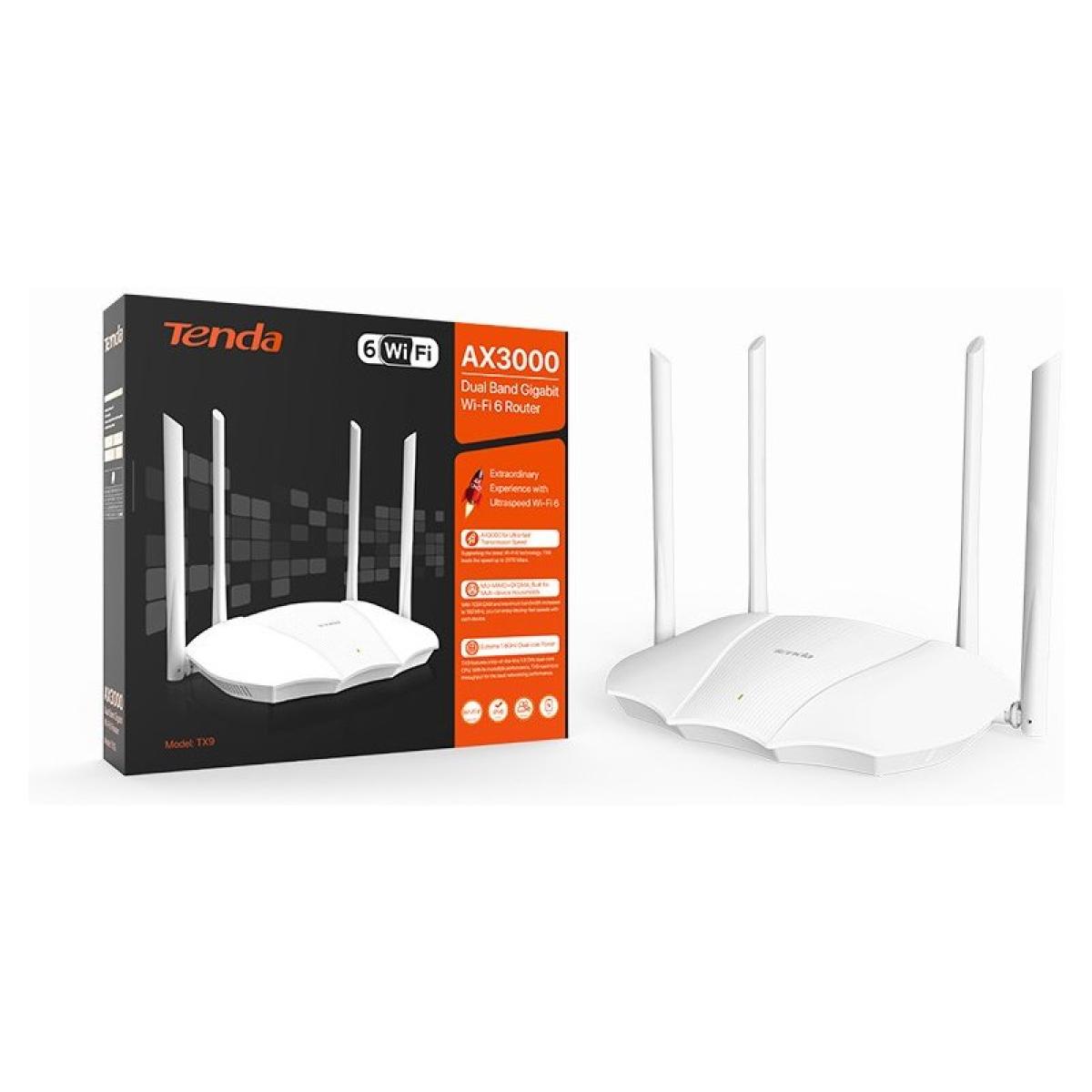

The Tenda TX9 is an AX3000 dual-band Gigabit Wi-Fi 6 router designed for fast wireless networking across compatible home devices. It delivers combined wireless rates up to 2976 Mbps, with up to 574 Mbps on 2.4 GHz and up to 2402 Mbps on 5 GHz, while four Gigabit Ethernet ports provide high-speed wired connectivity. A dual-core 1.6 GHz processor, four external 6 dBi antennas, MU-MIMO, OFDMA, Beamforming and 160 MHz bandwidth support on the 5 GHz band help the TX9 manage multiple connected devices efficiently. WPA3 security, IPv6, Guest Network, IPTV, Universal Repeater Mode and local or remote management through the Tenda app provide useful control for everyday networking. Key Features AX3000 Wi-Fi 6: Simultaneous dual-band wireless performance up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. Gigabit Wired Networking: One Gigabit WAN port and three Gigabit LAN ports for compatible wired devices. Four 6 dBi Antennas: External dual-band antennas combined with Beamforming help improve wireless signal coverage. Efficient Multi-Device Networking: MU-MIMO and OFDMA technologies improve wireless communication efficiency with multiple compatible devices. 160 MHz on 5 GHz: Supports wider 160 MHz bandwidth for compatible Wi-Fi 6 devices. Modern Network Features: WPA3, IPv6, Guest Network, IPTV, Universal Repeater Mode and Tenda app management are supported. Technical Specifications Component Specification Tenda Model TX9 Produ Type AX3000 Dual Band Gigabit Wi-Fi 6 Router Wi-Fi Standard IEEE 802.11ax/ac/a/n on 5 GHz; IEEE 802.11ax/b/g/n on 2.4 GHz Wi-Fi Class AX3000 Combined Wireless Rate Up to 2976 Mbps 5 GHz Wireless Rate Up to 2402 Mbps 2.4 GHz Wireless Rate Up to 574 Mbps Frequency Simultaneous 2.4 GHz + 5 GHz Dual Band 5 GHz Channel Bandwidth Up to 160 MHz Processor Dual-Core 1.6 GHz Antennas 4 x 6 dBi External Antennas Wireless Technologies OFDMA, MU-MIMO, Beamforming WAN Port 1 x 10/100/1000 Mbps Gigabit Ethernet LAN Ports 3 x 10/100/1000 Mbps Gigabit Ethernet Ethernet Standards IEEE 802.3 / 802.3u / 802.3ab Wireless Security WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE/WPA2-PSK WPS Supported Operating Modes Wireless Router / Universal Repeater Internet Connection Types PPPoE / Dynamic IP / Static IP IPv6 Supported Network Features Guest Network, IPTV, VLAN, Bandwidth Control, Static Routing, Port Forwarding, DMZ, UPnP VPN PPTP Server / PPTP Client / L2TP Client Management Browser Management / Tenda App Local and Remote Management Buttons WPS x 1 / Reset x 1 LED SYS x 1 Power Input AC 100–240 V, 50/60 Hz, 0.6 A Power Output DC 12 V / 1.5 A Dimensions 272.44 x 162.85 x 43.71 mm Operating Temperature 0°C to 40°C Operating Humidity 10%–90% RH, Non-Condensing Certifications CE / RoHS / FCC Compatibility & Important Information This listing is specifically for the Tenda TX9 and should not be mixed with TX9 Pro or RX9 specifications. The router provides one Gigabit WAN port and three Gigabit LAN ports; it does not provide a 2.5 GbE or 10 GbE interface. The maximum wireless rates of 2402 Mbps and 574 Mbps are theoretical link rates and require compatible client devices and suitable wireless conditions. 160 MHz bandwidth applies to the compatible 5 GHz Wi-Fi connection. WPA3 functionality requires compatible wireless client devices. Universal Repeater Mode is supported in addition to standard Wireless Router Mode. Tenda currently identifies TX9 as an EOL produ on its official support page. Package Contents Tenda TX9 Wireless Router x 1 Power Adapter x 1 Ethernet Cable x 1 Installation Guide x 1 Please to review Q: What Wi-Fi standard does the Tenda TX9 support? A: The TX9 supports Wi-Fi 6 using IEEE 802.11ax, together with compatible earlier Wi-Fi standards on the 2.4 GHz and 5 GHz bands. Q: What are the maximum wireless speeds? A: Tenda specifies up to 2402 Mbps on 5 GHz and up to 574 Mbps on 2.4 GHz, for a combined theoretical AX3000-class rate of up to 2976 Mbps. Q: Does the TX9 have Gigabit Ethernet ports? A: Yes. It provides one 10/100/1000 Mbps Gigabit WAN port and three 10/100/1000 Mbps Gigabit LAN ports. Q: Does the Tenda TX9 support 160 MHz Wi-Fi? A: Yes. Tenda specifies support for 160 MHz bandwidth on the 5 GHz band for compatible devices. Q: Does the TX9 support WPA3 security? A: Yes. WPA3-SAE/WPA2-PSK security is supported, along with WPA and WPA2 options. Q: Can the TX9 work as a Wi-Fi repeater? A: Yes. Tenda lists both Wireless Router Mode and Universal Repeater Mode. A: Yes. Tenda lists local and remote router management through the Tenda app. Q: Is TX9 the same as TX9 Pro? A: No. TX9 and TX9 Pro are separate Tenda models and their specifications should not be mixed.
