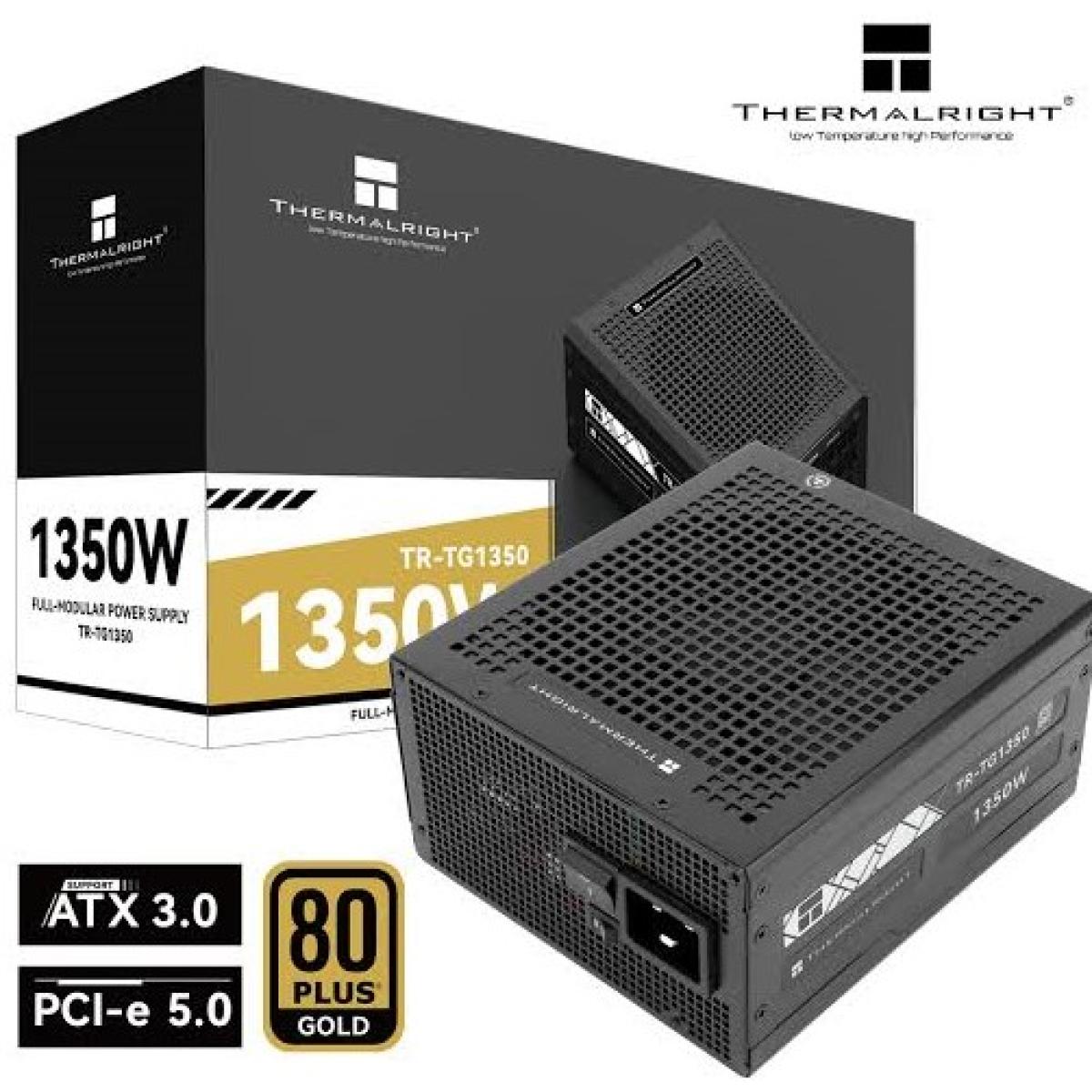

The Thermalright TG-1350 is a high-capacity 1350 W ATX power supply designed for desktop PC systems that require substantial power delivery and flexible cable management. It carries an 80 PLUS Gold efficiency rating and uses a fully modular design, allowing system builders to conne only the required power cables. A 140 mm cooling fan supports thermal management inside the 170 x 150 x 86 mm chassis, while the unit operates from 100–240 V AC input and includes OPP, OVP, OTP, OCP, SCP and UVP protection functions. Thermalright specifies an operating temperature range of 0°C to 40°C and a 10-year warranty. Key Features 1350 W Power Output: High-capacity power supply for compatible desktop PC configurations. 80 PLUS Gold: Officially specified 80 PLUS Gold efficiency rating. Full-Modular Design: Modular cable architecture helps simplify cable selection and system cable management. 140 mm Cooling Fan: Large integrated fan for power-supply cooling. Comprehensive Protection: OPP, OVP, OTP, OCP, SCP and UVP electrical protection functions. 10-Year Warranty: Backed by Thermalright's specified 10-year warranty. Technical Specifications Component Specification Thermalright Model TG-1350 Produ Type ATX Power Supply Rated Power 1350 W Efficiency Rating 80 PLUS Gold Modular Design Full-Modular Input Voltage 100–240 V AC Input Current 15–6.5 A Input Frequency 50–60 Hz Fan Size 140 mm Operating Temperature 0°C to 40°C MTBF More Than 100,000 Hours Protections OPP / OVP / OTP / OCP / SCP / UVP Dimensions 170 x 150 x 86 mm ±1 mm Warranty 10 Years Compatibility & Important Information The TG-1350 is an ATX power supply measuring 170 x 150 x 86 mm ±1 mm; verify available power-supply clearance in the PC case before purchase. The unit uses a fully modular cable design. Only cables intended for this exa power-supply model should be used. Input voltage is rated at 100–240 V AC with a 50–60 Hz input frequency. The specified operating temperature range is 0°C to 40°C. Thermalright lists OPP, OVP, OTP, OCP, SCP and UVP protection functions. PSU Specification Maximum Power 1000W - 1500W Energy - Efficient 80+ Gold Certified Modular Full Modular Please to review Q: What is the rated output of the Thermalright TG-1350? A: Thermalright specifies a rated power output of 1350 W. Q: What efficiency rating does the TG-1350 have? A: It carries an 80 PLUS Gold efficiency rating. Q: Is the Thermalright TG-1350 fully modular? A: Yes. Thermalright specifies a full-modular design. Q: What size cooling fan is installed? A: The power supply uses a 140 mm cooling fan. Q: What electrical protections are included? A: Thermalright lists OPP, OVP, OTP, OCP, SCP and UVP protection functions. Q: What are the dimensions of the TG-1350? A: It measures 170 x 150 x 86 mm with a stated tolerance of ±1 mm. Q: What input voltage does the power supply support? A: The official specification lists a 100–240 V AC input range at 50–60 Hz. Q: What warranty does Thermalright provide? A: Thermalright specifies a 10-year warranty for the TG-1350.
