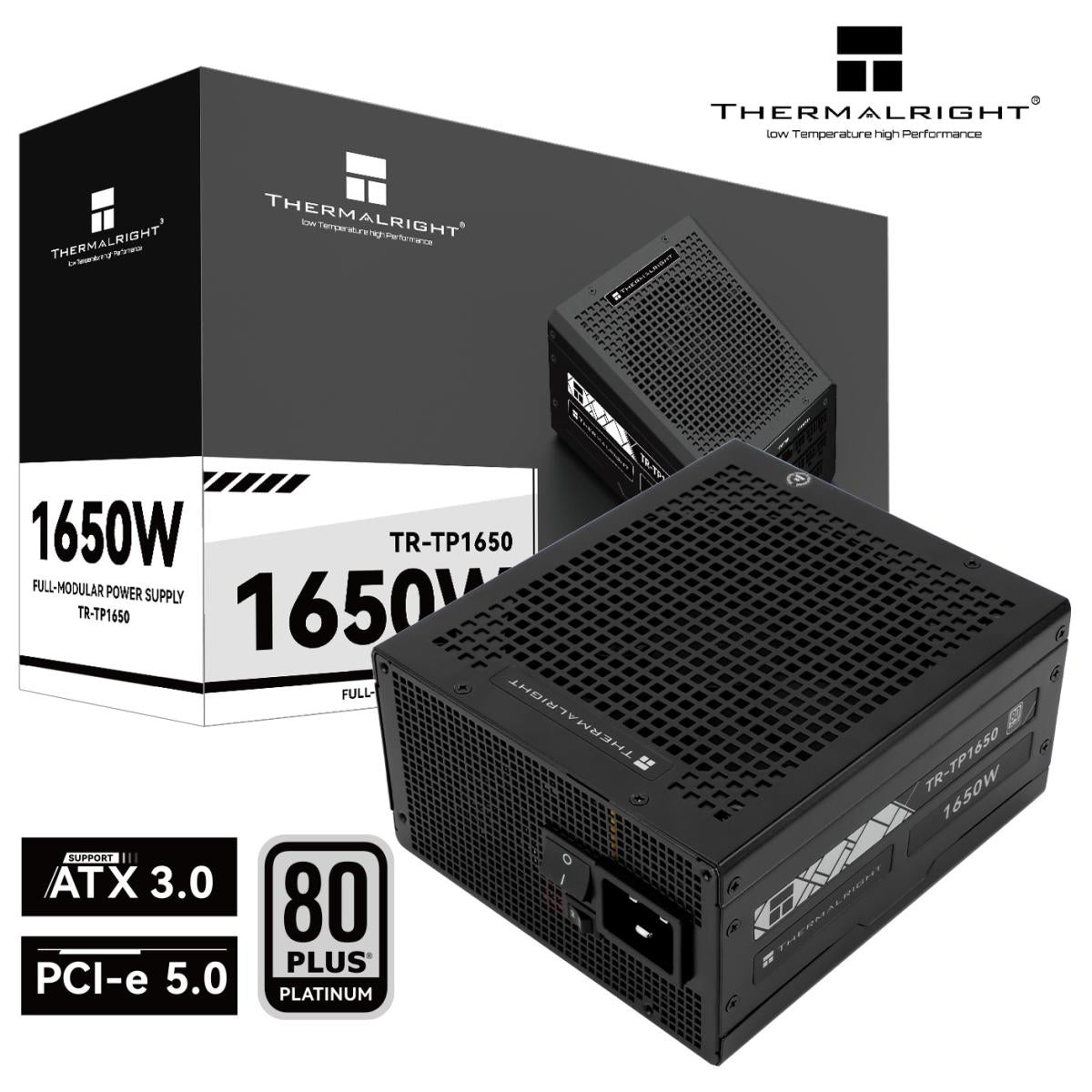

The Thermalright TP-1650 is a 1650 W full-modular power supply with 80 PLUS Platinum efficiency certification. Its modular design allows power cables to be connected as required, while a 140 mm fan provides active cooling. The TP-1650 supports 115–240 V AC input and incorporates OPP, OVP, OTP, OCP, SCP and UVP protection functions. Its chassis measures 170 × 150 × 86 mm and Thermalright specifies an operating temperature range of 0–40°C. Key Features 1650 W Output: High-capacity 1650 W power supply. 80 PLUS Platinum: Officially specified with 80 PLUS Platinum efficiency certification. Full-Modular Design: Modular cable architecture allows required power cables to be connected separately. 140 mm Fan: Integrated 140 mm fan provides active PSU cooling. Six Protection Functions: OPP, OVP, OTP, OCP, SCP and UVP electrical protections. Long Service Specification: MTBF is specified at more than 100,000 hours. Technical Specifications Component Specification Thermalright Model TP-1650 Wattage 1650 W Efficiency 80 PLUS Platinum Modular Design Full-Modular Input Voltage 115–240 V AC Input Current 15–8 A Input Frequency 50–60 Hz Fan Size 140 mm Operating Temperature 0–40°C MTBF >100,000 Hours Protections OPP / OVP / OTP / OCP / SCP / UVP Dimensions 170 × 150 × 86 mm ± 1 mm Warranty 10 Years Compatibility & Important Information The TP-1650 measures 170 × 150 × 86 mm ± 1 mm. Its full-modular cable design allows cables to be connected to the power supply as required, and the unit supports 115–240 V AC input at 50–60 Hz. PSU Specification Maximum Power 1501W - 1700W Energy - Efficient 80+ Platinum Certified Modular Full Modular Please to review Q: What is the rated power of the Thermalright TP-1650? A: Thermalright specifies a power rating of 1650 W. Q: What efficiency certification does the TP-1650 have? A: The TP-1650 is specified with 80 PLUS Platinum efficiency certification. Q: Is the Thermalright TP-1650 modular? A: Yes. Thermalright specifies the TP-1650 as Full-Modular. Q: What size cooling fan does the TP-1650 use? A: The power supply uses a 140 mm fan. Q: What are the dimensions of the TP-1650? A: Thermalright specifies dimensions of 170 × 150 × 86 mm ± 1 mm. Q: Which electrical protections are included? A: Thermalright lists OPP, OVP, OTP, OCP, SCP and UVP protection functions. Q: What input voltage does the TP-1650 support? A: The specified input voltage range is 115–240 V AC at 50–60 Hz. Q: What warranty does Thermalright specify for the TP-1650? A: Thermalright specifies a 10-year warranty for the TP-1650.
