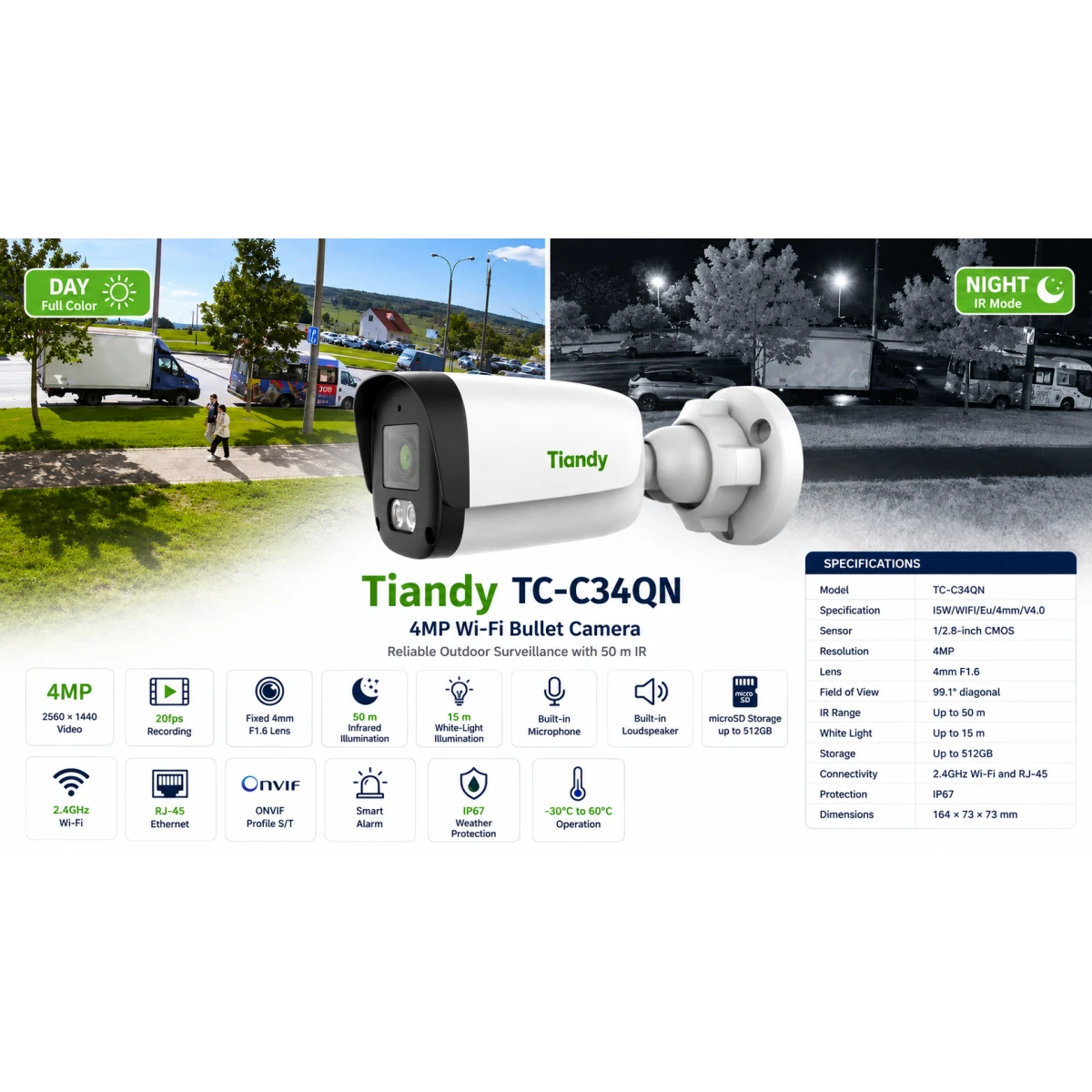

The Tiandy TC-C34QN I5W/WIFI/Eu/4mm/V4.0 is a 4MP fixed IR Wi-Fi bullet camera designed for reliable indoor and outdoor surveillance. It combines 2560 × 1440 video resolution, a fixed 4mm lens, infrared illumination up to 50 metres, white-light illumination up to 15 metres, two-way audio, local microSD storage up to 512GB, and both wireless and wired network connectivity. With IP67 weather protection, S+265 compression, Smart Alarm analytics, ONVIF Profile S/T compatibility, and support for EasyLive Plus and Easy7 VMS, the camera is suitable for homes, offices, shops, warehouses, entrances, and perimeter-monitoring applications. AI Summary The Tiandy TC-C34QN is a 4MP Wi-Fi bullet camera with detailed 2560 × 1440 video at 20fps. Its fixed 4mm lens provides a 99.1° diagonal field of view for broad scene coverage. Infrared illumination reaches up to 50 metres, while white-light illumination reaches up to 15 metres. Built-in audio, microSD storage up to 512GB, Wi-Fi, and RJ-45 connectivity provide flexible installation options. IP67 protection and operation from -30°C to 60°C support demanding outdoor environments. Feature Highlights ◉ 4MP High-Resolution Video Capture detailed surveillance footage at up to 2560 × 1440 resolution and 20 frames per second. ☾ 50 m Infrared Illumination Two infrared LEDs provide night monitoring at distances of up to 50 metres. ✦ 15 m White-Light Illumination Two white LEDs provide visible-light illumination up to 15 metres. ♬ Two-Way Audio ▣ Up to 512GB Local Storage Supports microSD, microSDHC, and microSDXC cards with capacities up to 512GB. ☂ IP67 Weather Protection The metal-and-plastic enclosure supports outdoor installation in temperatures from -30°C to 60°C. Key Features 4MP Resolution: Supports video up to 2560 × 1440 at 20fps. Fixed 4mm Lens: Provides an 86° horizontal and 99.1° diagonal field of view. Long-Range IR: Infrared illumination reaches up to 50 metres. White-Light Support: Visible-light illumination reaches up to 15 metres. Two-Way Audio: Local Recording: Supports microSD storage capacities up to 512GB. Wireless and Wired Networking: Supports 2.4GHz Wi-Fi and RJ-45 Ethernet. Efficient Compression: Supports S+265, H.265, and H.264 formats. Smart Alarm: Includes video analytics and alarm-linkage functions. ONVIF Compatibility: Supports ONVIF Profile S/T, SDK, CGI, and Milestone. Outdoor Protection: IP67-rated enclosure. Wide Temperature Range: Operates from -30°C to 60°C. Performance & Experience The Tiandy TC-C34QN provides detailed 4MP surveillance video through a 1/2.8-inch CMOS sensor and fixed 4mm lens. Its 86° horizontal field of view makes it suitable for entrances, corridors, building exteriors, shops, warehouses, and perimeter-monitoring areas. For low-light operation, the camera combines infrared and white-light illumination. Smart IR helps optimise infrared exposure, while DWDR, BLC, HLC, AGC, 3D DNR, defog, and multiple white-balance settings improve image usability under changing lighting conditions. The camera supports both Wi-Fi and wired Ethernet connections. Built-in audio enables two-way communication, while local microSD recording supports capacities up to 512GB. S+265 compression helps reduce bandwidth and storage usage in compatible deployments. Why Choose This Produ? Detailed 4MP video at 20fps. Long-range infrared illumination up to 50 metres. White-light illumination up to 15 metres. Large local-storage support up to 512GB. Both Wi-Fi and Ethernet connectivity. ONVIF Profile S/T compatibility. Smart Alarm analytics and ANR support. IP67 weather protection. Wide operating range from -30°C to 60°C. Compa bullet-camera design. Metal-and-plastic housing. Technical Specifications Tiandy Model TC-C34QN Full Specification I5W/WIFI/Eu/4mm/V4.0 Produ Type 4MP Fixed IR Wi-Fi Bullet Camera Housing Material Metal and plastic Image Sensor 1/2.8-inch CMOS Maximum Resolution 4MP, 2560 × 1440 at 20fps Minimum Illumination Color: 0.02 Lux at F2.0 with AGC on; Black and white: 0 Lux with IR Shutter Time 1 second to 1/100000 second Day and Night IR-cut filter with automatic switching Smart IR Supported Wide Dynamic Range DWDR Signal-to-Noise Ratio Greater than 40dB Pan Adjustment 0–360° Tilt Adjustment 0–80° Rotation Adjustment 0–360° Lens Type Fixed focal lens Focal Length 4mm Lens Mount M12 Aperture F1.6 fixed Horizontal Field of View 86° Vertical Field of View 45.2° Diagonal Field of View 99.1° DORI Dete Distance 65.31 m DORI Observe Distance 25.92 m DORI Recognise Distance 13.06 m DORI Identify Distance 6.53 m IR LEDs IR Distance Up to 50 m IR Wavelength 850nm White LEDs White-Light Distance Up to 15 m Video Compression S+265, H.265, H.264B, H.264M, H.264H Video Bit Rate 32Kbps–4Mbps Audio Compression G.711A and G.711U Audio Sampling Rate 8kHz and 16kHz Image Enhancements BLC, HLC, AGC, 3D DNR, defog, and white-balance controls Privacy Mask 4 black static areas Video Analytics Smart Alarm ANR Supported Built-in Loudspeaker On-Board Storage microSD, microSDHC, and microSDXC up to 512GB Reset Button Supported Operating Temperature -30°C to 60°C Operating Humidity Up to 95% RH Storage Temperature -30°C to 60°C Storage Humidity 10%–95% RH, non-condensing Power Supply DC 12V ±25% Maximum Power Consumption 7.5W Protection 4000V surge protection, 6000V ESD protection, IP67 Dimensions 164 × 73 × 73 mm Package Dimensions 215 × 95 × 120 mm Gross Weight 0.46 kg Connectivity Wi-Fi Standard IEEE 802.11b/g/n Wi-Fi Frequency 2.4GHz–2.4835GHz Channel Bandwidth 20MHz and 40MHz Wi-Fi Security WPA-PSK and WPA2-PSK Wireless Transmission Distance Up to 50 m, depending on the installation environment Ethernet Interface 1 × RJ-45, 10/100 Base-T Network Protocols RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, TLS 1.2, IPv4, SSH, Unicast, and FTP System Compatibility ONVIF Profile S/T, SDK, CGI, and Milestone Desktop Client Easy7 VMS Mobile Client EasyLive Plus Supported Web Browsers Internet Explorer 10+, Firefox 52+, Edge 89+, Safari 11+, and Chrome 57+ Remote Connections Up to 2 Ideal For Outdoor home security Building entrances Retail-shop exteriors Warehouse monitoring Office perimeters Parking areas Corridors and loading areas Gates and boundary monitoring Indoor areas requiring a fixed camera view Who Should Buy This? The Tiandy TC-C34QN is suitable for homeowners, small businesses, retailers, offices, and warehouse operators who need a fixed-view 4MP camera with long-range infrared coverage, two-way audio, Wi-Fi and Ethernet connectivity, large local-storage support, and strong outdoor protection. Please to review Q: What is the maximum resolution of the Tiandy TC-C34QN? A: It supports up to 4MP resolution at 2560 × 1440 and 20fps. Q: What lens does the camera use? A: It uses a fixed 4mm lens with an F1.6 aperture. Q: How far does the infrared night vision reach? A: Its infrared illumination reaches up to 50 metres. Q: Does the camera include white-light illumination? A: Yes. The white-light range is up to 15 metres. Q: Does it support two-way audio? Q: What is the maximum supported memory-card capacity? A: It supports microSD, microSDHC, and microSDXC cards up to 512GB. Q: Can it conne through both Wi-Fi and Ethernet? A: Yes. It supports 2.4GHz Wi-Fi and one RJ-45 10/100 Base-T port. Q: Does the camera support ONVIF? A: Yes. It supports ONVIF Profile S and Profile T. Q: Which mobile application works with the camera? A: The official mobile client is EasyLive Plus. Q: Is the camera suitable for outdoor use? A: Yes. It has an IP67 protection rating and operates from -30°C to 60°C. Q: What power supply does it require? A: It uses DC 12V ±25% and consumes up to 7.5W.
