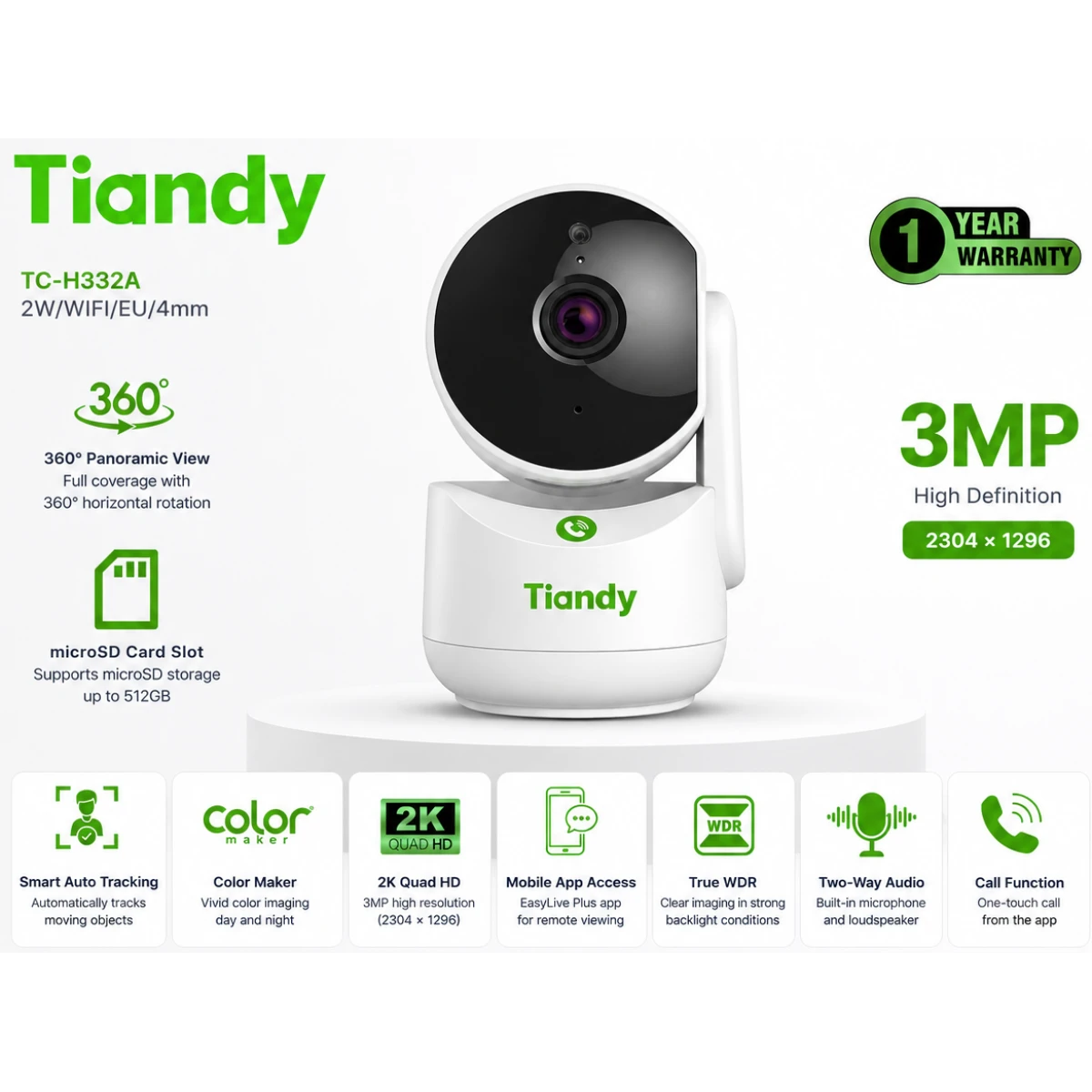

The Tiandy TC-H332A 9DA-4 is a compa 3MP Wi-Fi pan-and-tilt security camera designed for indoor monitoring. It combines 2304 × 1296 video, motorised pan and tilt movement, automatic tracking, infrared night vision, white-light illumination, two-way audio, and local microSD storage in a compa plastic housing. With support for S+265, H.265, and H.264 video compression, ONVIF Profile S/T compatibility, and mobile access through EasyLive Plus, the camera is suitable for monitoring homes, offices, shops, reception areas, and other indoor spaces. AI Summary The Tiandy TC-H332A 9DA-4 is a compa indoor Wi-Fi PT camera with 3MP video resolution. Its motorised mechanism provides up to 350° pan movement and a tilt range from -90° to 90°. Automatic tracking, Smart Alarm, infrared night vision, and white-light illumination support continuous indoor monitoring. The camera works with EasyLive Plus, Easy7 VMS, ONVIF Profile S/T, SDK, CGI, and Milestone. Feature Highlights ◉ 3MP Video Resolution Capture video at up to 2304 × 1296 resolution and 20 frames per second for detailed indoor monitoring. ↻ Motorised Pan and Tilt The camera supports up to 350° pan adjustment and a tilt range from -90° to 90° for flexible room coverage. ◎ Automatic Tracking Auto-tracking helps the camera follow detected activity within its supported coverage area. ☾ Infrared and White Light Four infrared LEDs provide night vision up to 15 metres, while one white LED supports illumination up to 10 metres. ♬ Two-Way Audio ▣ Local microSD Storage Supports microSD, microSDHC, and microSDXC cards with capacities up to 256GB. Key Features 3MP Resolution: Supports video up to 2304 × 1296 at 20fps. Motorised PT Movement: Provides 0–350° pan and -90° to 90° tilt adjustment. Automatic Tracking: Supports auto-tracking and Smart Alarm video analytics. Fixed 4mm Lens: Offers an 84.6° horizontal, 46.3° vertical, and 98.1° diagonal field of view. Infrared Night Vision: Four 850nm IR LEDs provide illumination up to 15 metres. White-Light Illumination: One white LED provides illumination up to 10 metres. Two-Way Audio: Efficient Compression: Supports S+265, H.265, and H.264 video formats. Wi-Fi Connectivity: Supports IEEE 802.11b/g/n on the 2.4GHz band. Local Recording: Supports microSD storage capacities up to 256GB. Mobile Access: Works with the EasyLive Plus mobile application. System Integration: Supports ONVIF Profile S/T, SDK, CGI, and Milestone. USB-C Power: Operates from DC 5V power through a USB Type-C connection. Performance & Experience The Tiandy TC-H332A 9DA-4 provides flexible indoor coverage through its motorised pan-and-tilt system. The camera can rotate across a 350° pan range and move vertically from -90° to 90°, while support for up to 255 presets makes it suitable for monitoring multiple areas within the same room. Its 1/2.8-inch CMOS sensor captures video at up to 3MP resolution. Smart IR, DWDR, BLC, HLC, AGC, 3D DNR, defog, and multiple white-balance modes help improve image usability across different indoor lighting conditions. Why Choose This Produ? Compa all-in-one indoor monitoring camera. 3MP video resolution with multiple stream options. Motorised pan and tilt for wider room coverage. Automatic tracking and Smart Alarm functionality. Infrared night vision up to 15 metres. White-light illumination up to 10 metres. Local microSD recording up to 256GB. Wi-Fi connectivity with WPA-PSK and WPA2-PSK security. ONVIF support for compatible surveillance platforms. Compa 74 × 74 × 118 mm housing. USB Type-C power input. Technical Specifications Tiandy Model TC-H332A 9DA-4 Produ Type Wi-Fi PT Security Camera Housing Material Plastic Image Sensor 1/2.8-inch CMOS Maximum Resolution 3MP, 2304 × 1296 at 20fps Minimum Illumination Color: 0.02 Lux at F2.0 with AGC on; Black and white: 0 Lux with IR Shutter Time 1 second to 1/100000 second Day and Night IR-cut filter with automatic switching Smart IR Supported Wide Dynamic Range DWDR Signal-to-Noise Ratio Greater than 38dB Pan Adjustment 0–350° Tilt Adjustment -90° to 90° Pan Speed 45° per second Tilt Speed 30° per second Presets 255 Lens Type Fixed focal lens Focal Length 4mm Lens Mount M12 Aperture F2.0 fixed Horizontal Field of View 84.6° Vertical Field of View 46.3° Diagonal Field of View 98.1° DORI Dete Distance 65.31 m DORI Observe Distance 25.92 m DORI Recognise Distance 13.06 m DORI Identify Distance 6.53 m IR LEDs IR Distance Up to 15 m IR Wavelength 850nm White LEDs White-Light Distance Up to 10 m Video Compression S+265, H.265, H.264B, H.264M, H.264H Video Bit Rate 32Kbps–4Mbps Audio Compression G.711A, G.711U, ADPCM_D Audio Sampling Rate 8kHz and 16kHz Image Enhancements BLC, HLC, AGC, 3D DNR, defog, and white-balance controls Privacy Mask 4 black static areas Video Analytics Smart Alarm Auto-Tracking Supported Built-in Loudspeaker On-Board Storage microSD, microSDHC, and microSDXC up to 256GB Reset Button Supported Bluetooth Provisioning Supported Operating Temperature -10°C to 45°C Operating Humidity Up to 95% RH Storage Temperature -10°C to 45°C Storage Humidity 10%–95% RH, non-condensing Power Supply DC 5V ±5%, USB Type-C Maximum Power Consumption Protection 500V surge protection and 6000V ESD protection Dimensions 74 × 74 × 118 mm Package Dimensions 97 × 97 × 165 mm Gross Weight 0.38 kg Connectivity Wireless Standard IEEE 802.11b/g/n Wi-Fi Frequency 2.4GHz–2.4835GHz Channel Bandwidth 20MHz and 40MHz Wi-Fi Security WPA-PSK and WPA2-PSK Wireless Transmission Distance Up to 30 m, depending on the installation environment Network Protocols RTSP, TCP, UDP, ICMP, DHCP, DNS, NTP, TLS 1.2, IPv4, SSH, and Unicast System Compatibility ONVIF Profile S/T, SDK, CGI, and Milestone Desktop Client Easy7 VMS Mobile Client EasyLive Plus Remote Connections Up to 2 Power Connector USB Type-C Ideal For Home interior monitoring Apartment security Small office monitoring Retail shop interiors Reception areas Children’s rooms Pet monitoring Storage rooms Indoor entrance areas Who Should Buy This? The Tiandy TC-H332A 9DA-4 is suitable for users who need a compa indoor Wi-Fi security camera with motorised movement, automatic tracking, night vision, two-way audio, mobile access, and local storage. It is particularly useful for homes and small businesses that require flexible room coverage without installing a fixed-view camera in every direction. Please to review Q: What is the maximum video resolution of the Tiandy TC-H332A 9DA-4? A: It supports up to 3MP resolution at 2304 × 1296 and 20fps. Q: Can the camera pan and tilt remotely? A: Yes. It supports 0–350° pan movement and a tilt range from -90° to 90°. Q: Does the camera support automatic tracking? A: Yes. Automatic tracking is officially supported. Q: How far can the camera see at night? A: Its infrared illumination reaches up to 15 metres. Q: Does it include white-light illumination? A: Yes. One white LED provides illumination up to 10 metres. Q: Does it support two-way audio? Q: What memory cards are supported? A: It supports microSD, microSDHC, and microSDXC cards with capacities up to 256GB. Q: Which Wi-Fi band does the camera use? A: It operates on the 2.4GHz band and supports IEEE 802.11b/g/n. Q: Which mobile application works with the camera? A: The official mobile client is EasyLive Plus. Q: Does it support ONVIF? A: Yes. It supports ONVIF Profile S and Profile T. Q: How is the camera powered? A: It uses DC 5V power through a USB Type-C connection and consumes up to 7W. Q: Is the camera suitable for outdoor installation? A: The official specifications identify a plastic housing and an operating range of -10°C to 45°C, but do not list an outdoor ingress-protection rating. It should be presented as an indoor camera.
