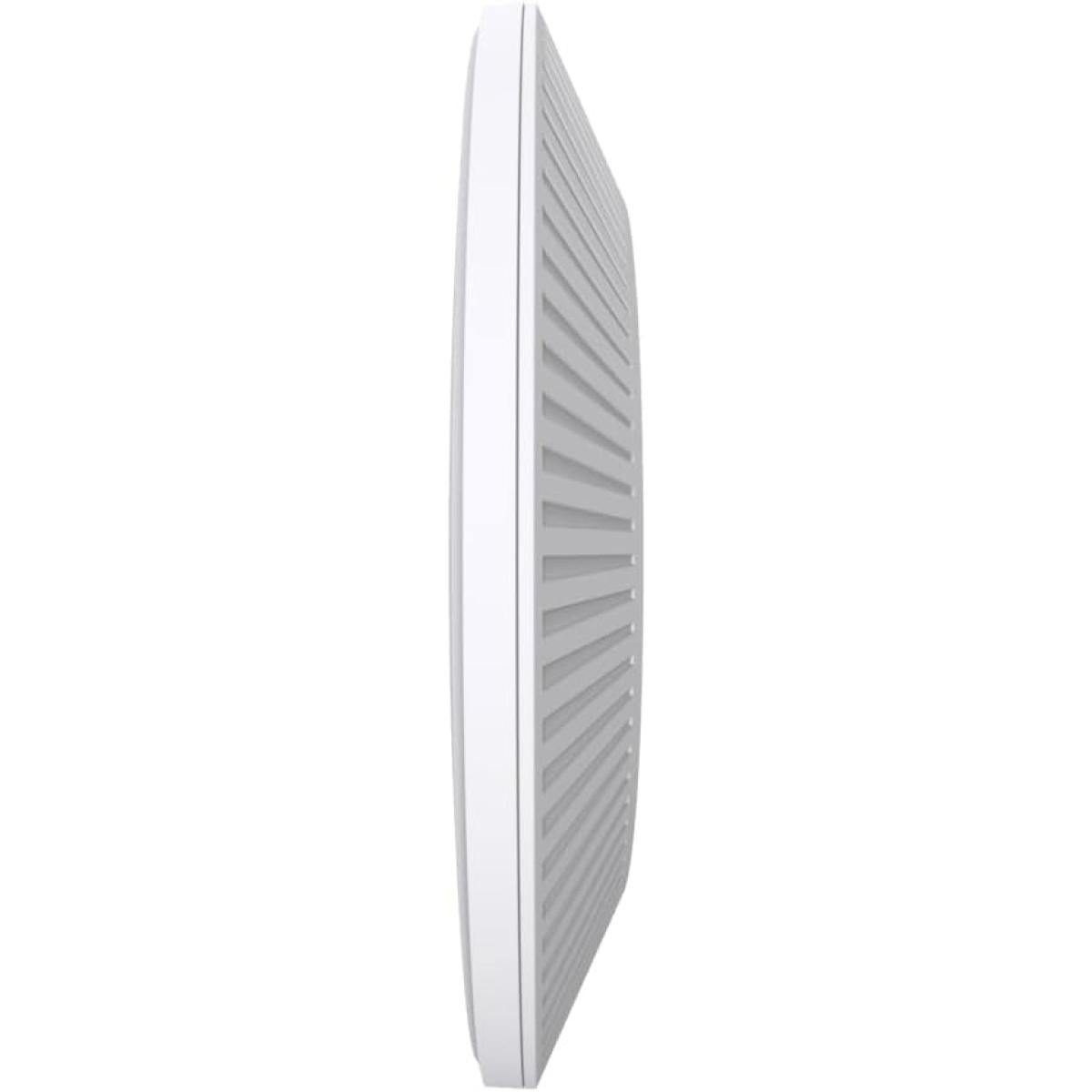

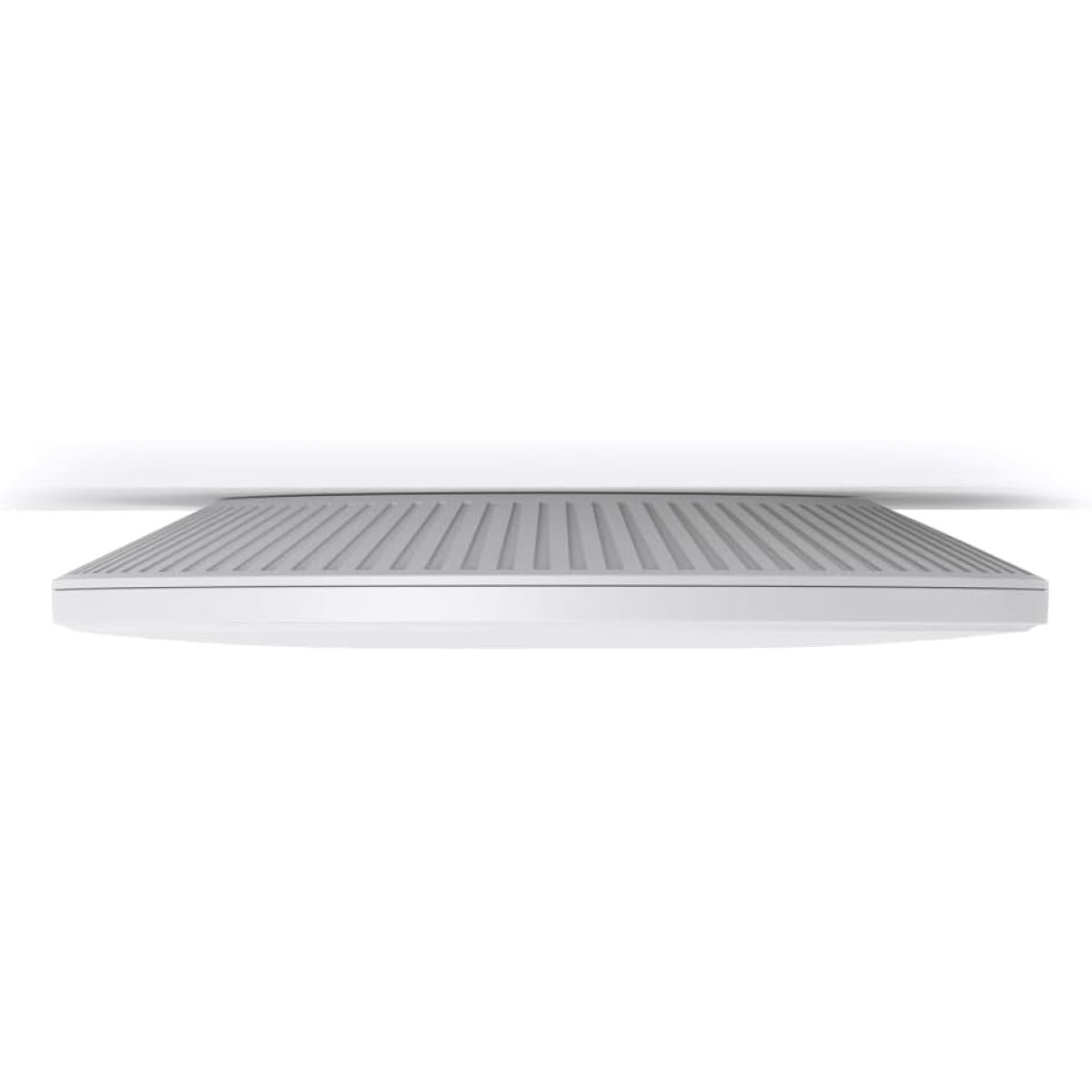

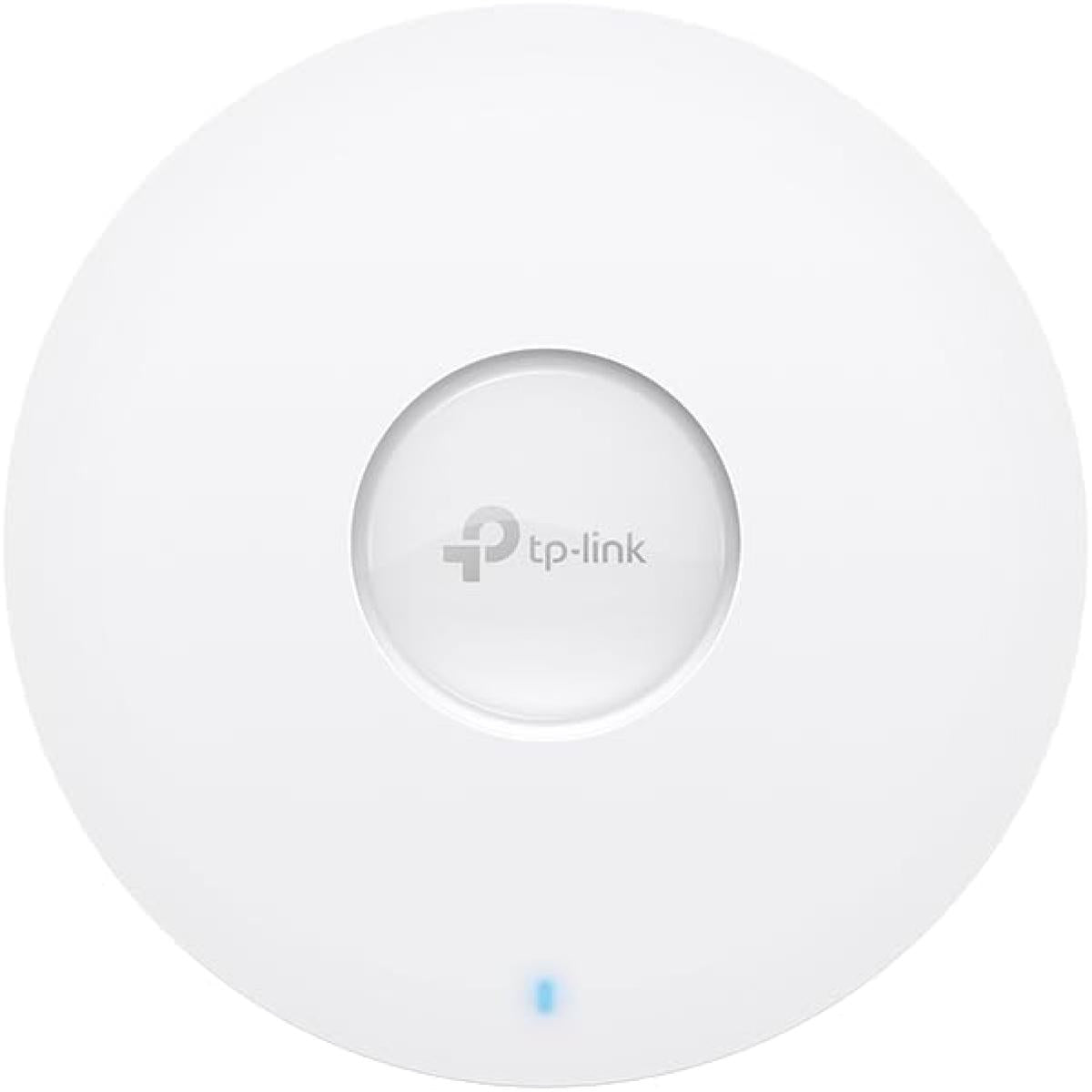

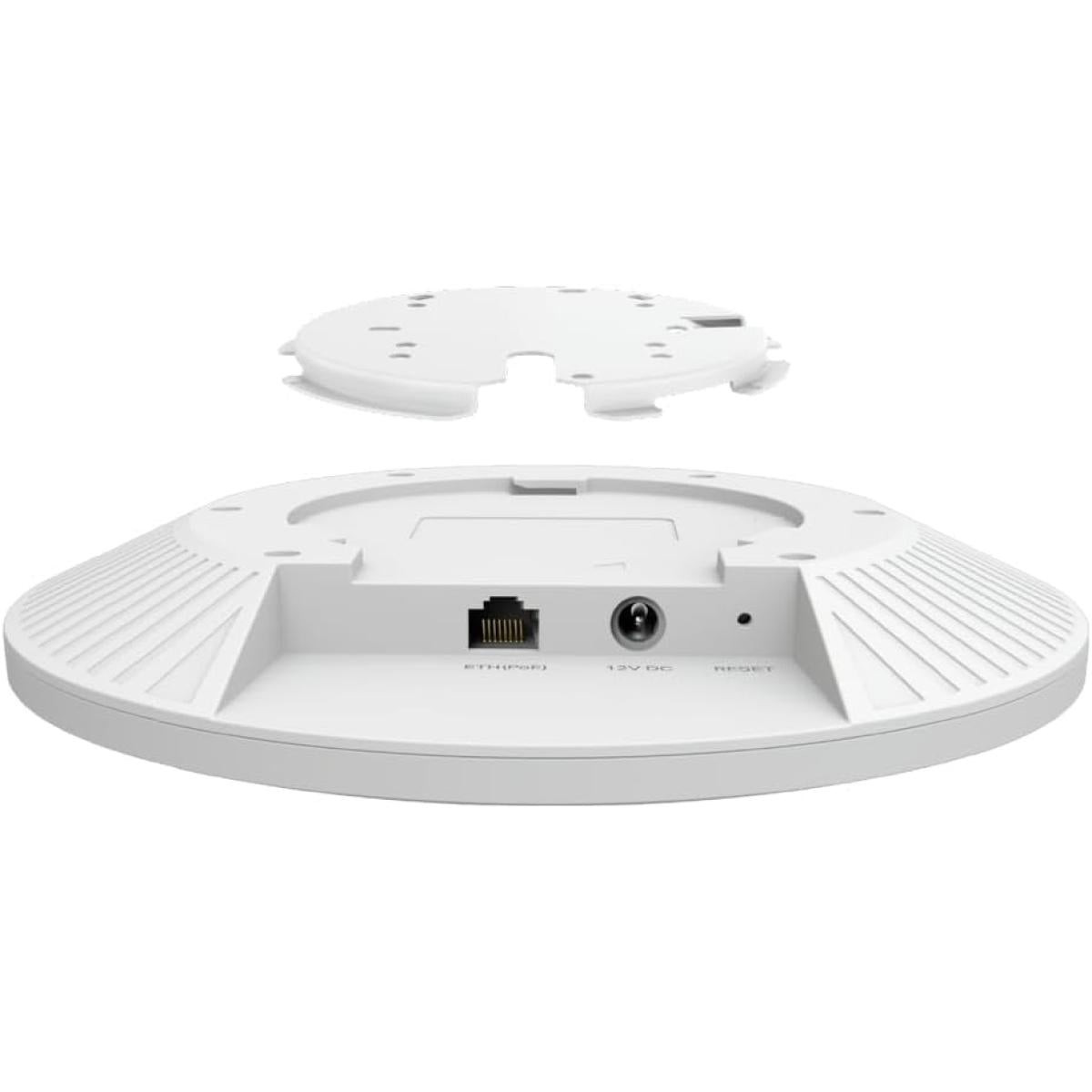

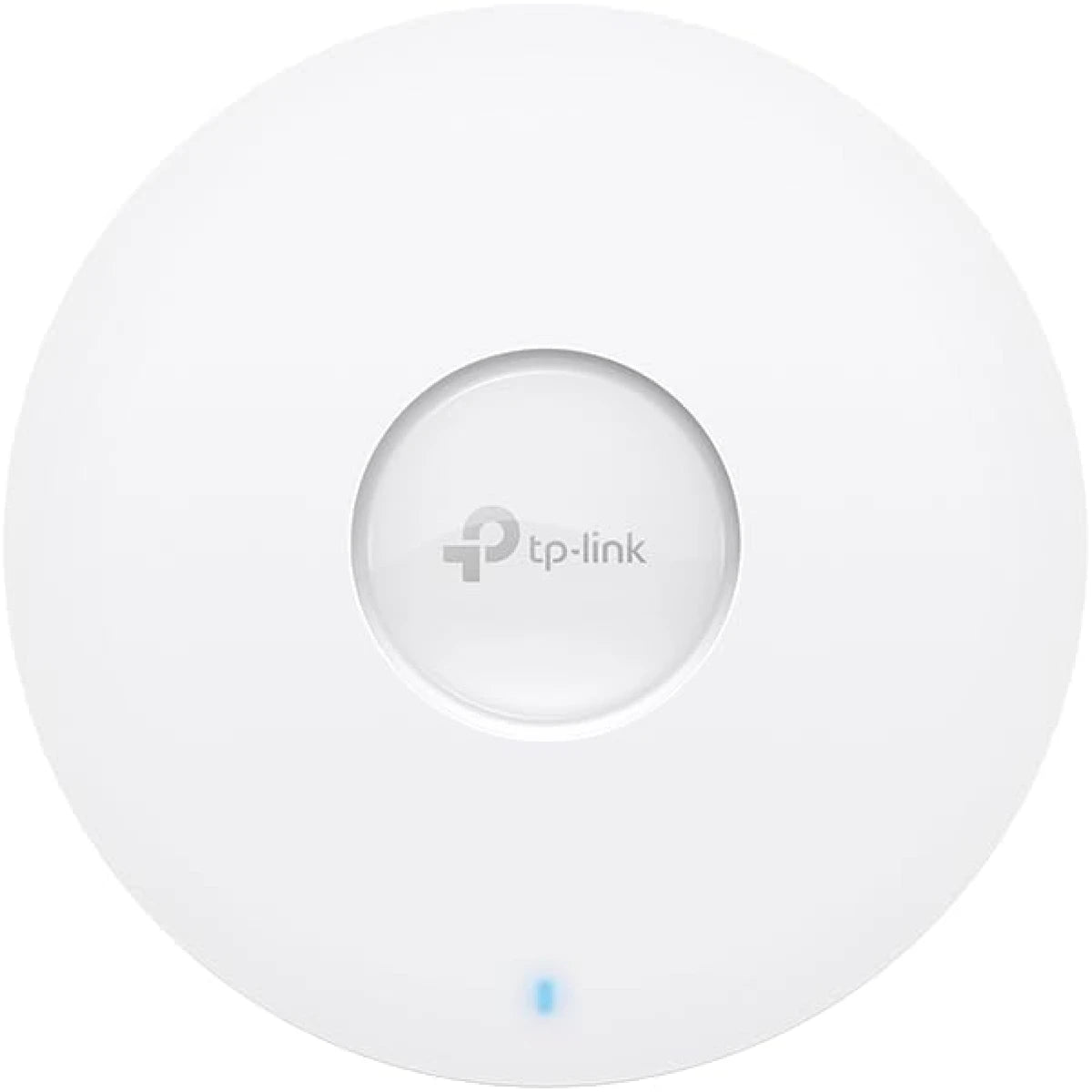

TP-Link Omada EAP673 Wi-Fi 6 Wireless Access Point - AX5400 Dual Band, 2.5G Port, PoE+ or DC Powered, Adapter NOT Included, 5yr Warranty, 6 Spatial Streams, Captive Portal, Mesh, WPA3, Roaming

HARDWARE FEATURES Interface 1× 2.5 Gigabit RJ45 Port Button Reset Power Supply • 802.3at PoE • 12 V / 2 A DC (Power Adapter Not Included) Max. Power Consumption 22.3 W Weight • Main Unit: 0.68 kg (1.5 lbs) • Mounting Bracket: 0.05 kg (0.11 lbs) • Shipping Unit: 1.10 kg (2.43 lbs) Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5.5 dBi Bluetooth V5.2 Mounting Ceiling / Wall / Junction Box Mounting (Kits Included) WIRELESS FEATURES Coverage 1500 ft² (140㎡) Concurrent Clients 250+ Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO (5G: 4x4 DL/UL MU-MIMO) • HE MHz Bandwidth) • Seamless Roaming(802.11k/v/r) • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power 4-25 dBm (2.4 GHz) 7-28 dBm (5 GHz, U-NII-1 & U-NII-2A & U-NII2C & U-NII-3) Management Features Omada App Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Require the use of an Omada controller. OTHERS Certification CE, FCC, RoHS Package Content • EAP673 • Ceiling/Wal/Junctionl Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
