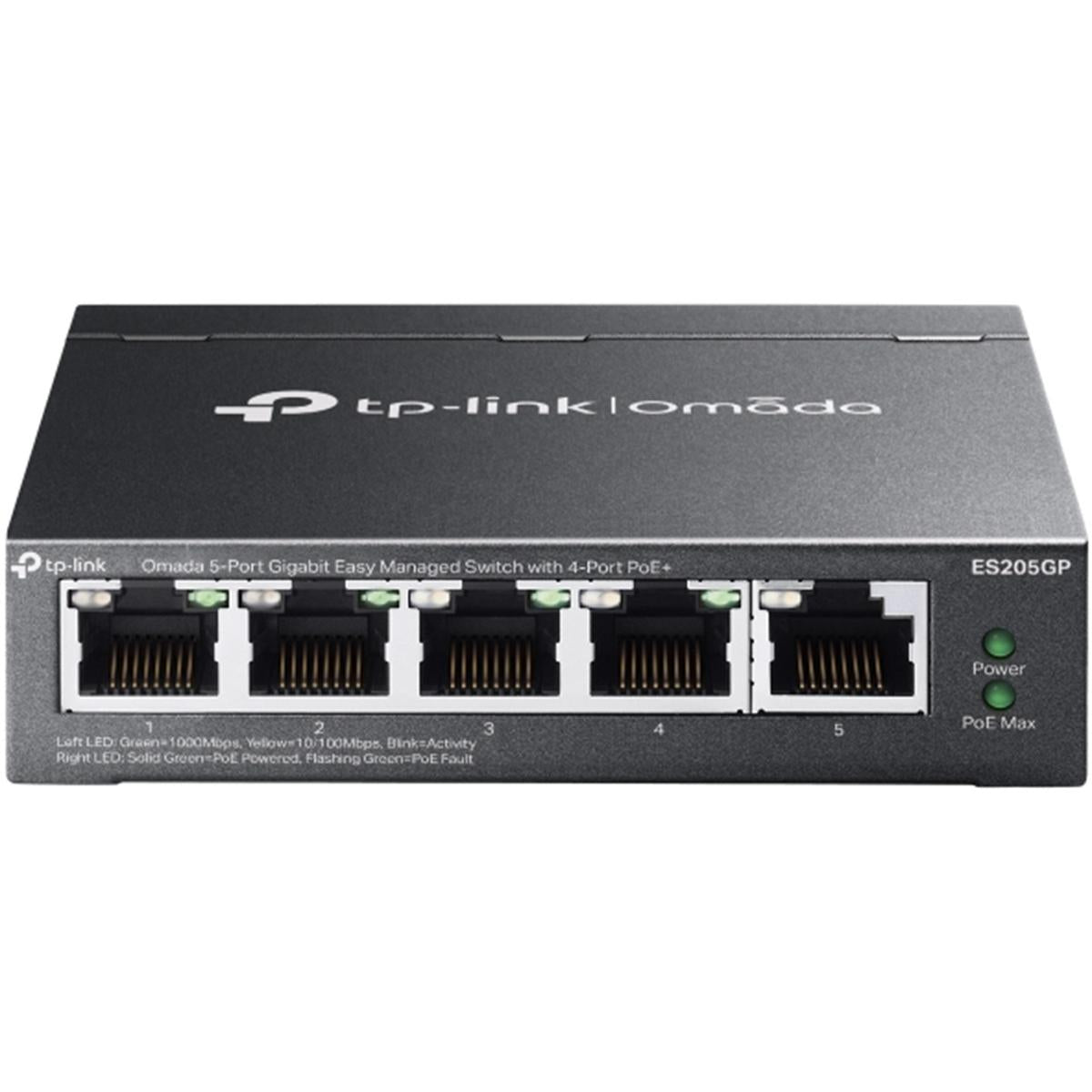

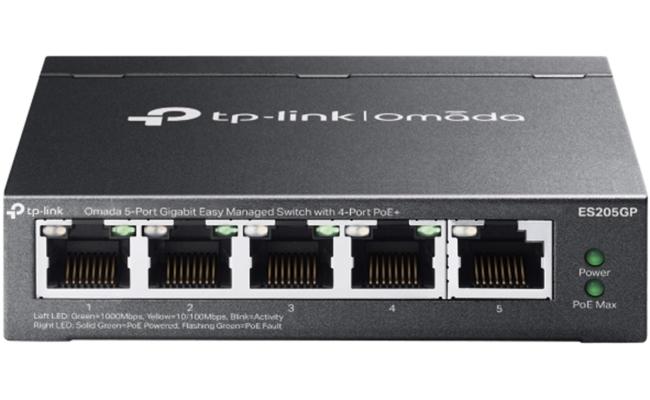

TP-Link Omada ES205GP 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, 65W Power Budget, Metal Case, Auto Recovery, Port Isolation, VLAN, IGMP Snooping, Centralised Cloud Management, Plug & Play

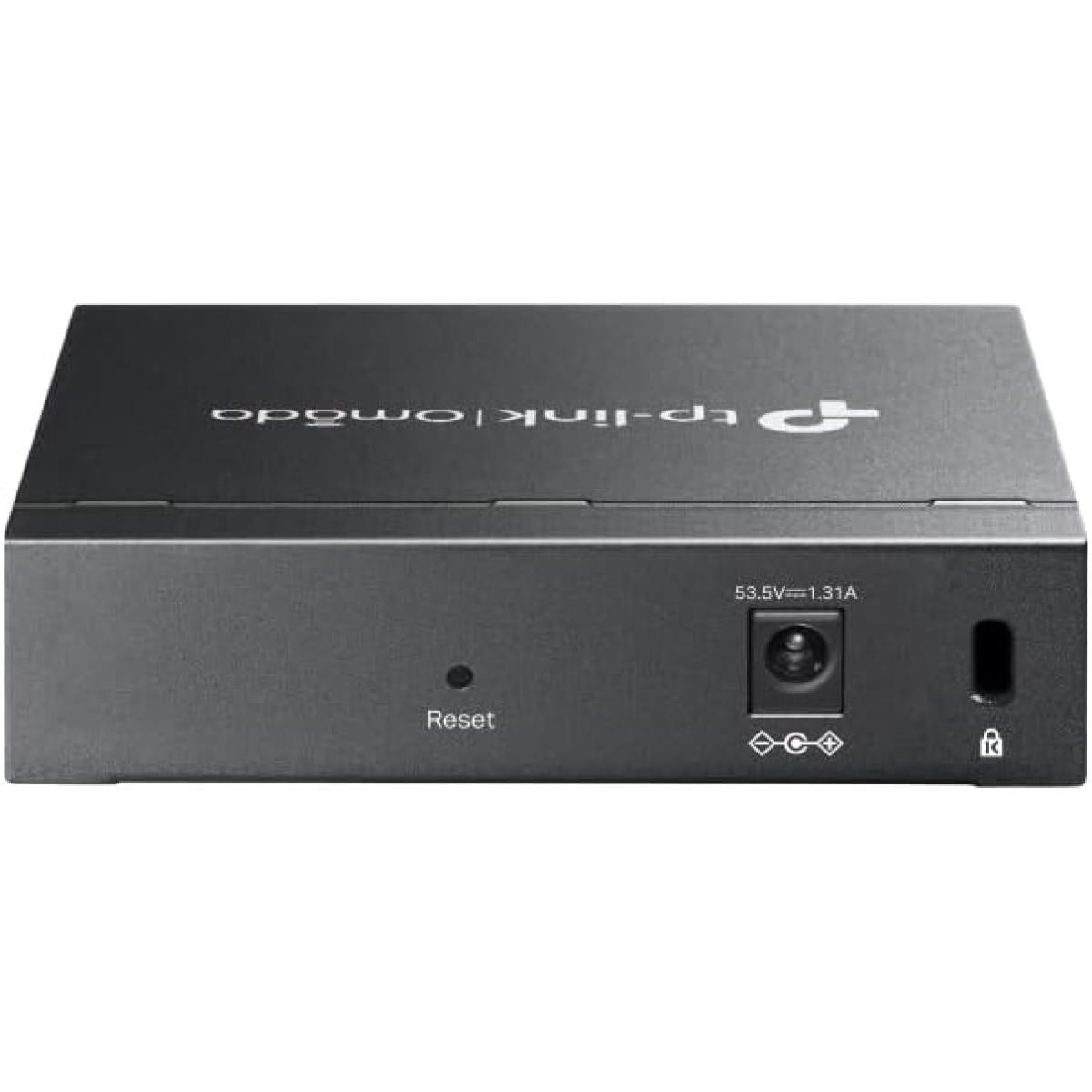

HARDWARE FEATURES Interface • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) • Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • Desktop • Wall Mount Physical Security Lock Power Supply DC Power Adapter (Output: 53.5 VDC/ 1.31 A) PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65 W available for all PoE+ ports, 30W max per port • PoE Auto Recovery • Up to 250m PoE transmission distance** Dimensions (W x D x H) 3.9×3.9×1.0 in (100×98×25 mm) Surge Protection ±6kV PERFORMANCE Switching Capacity 10Gbps Packet Forwarding Rate 7.4 Mpps MAC Address Table Packet Buffer Memory 4 Mbit Jumbo Frame 15KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration OTHERS Certification FCC, CE, RoHS Package Contents • ES205GP • Power Adapter • Installation Guide • Rubber Feet Environment • Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue
