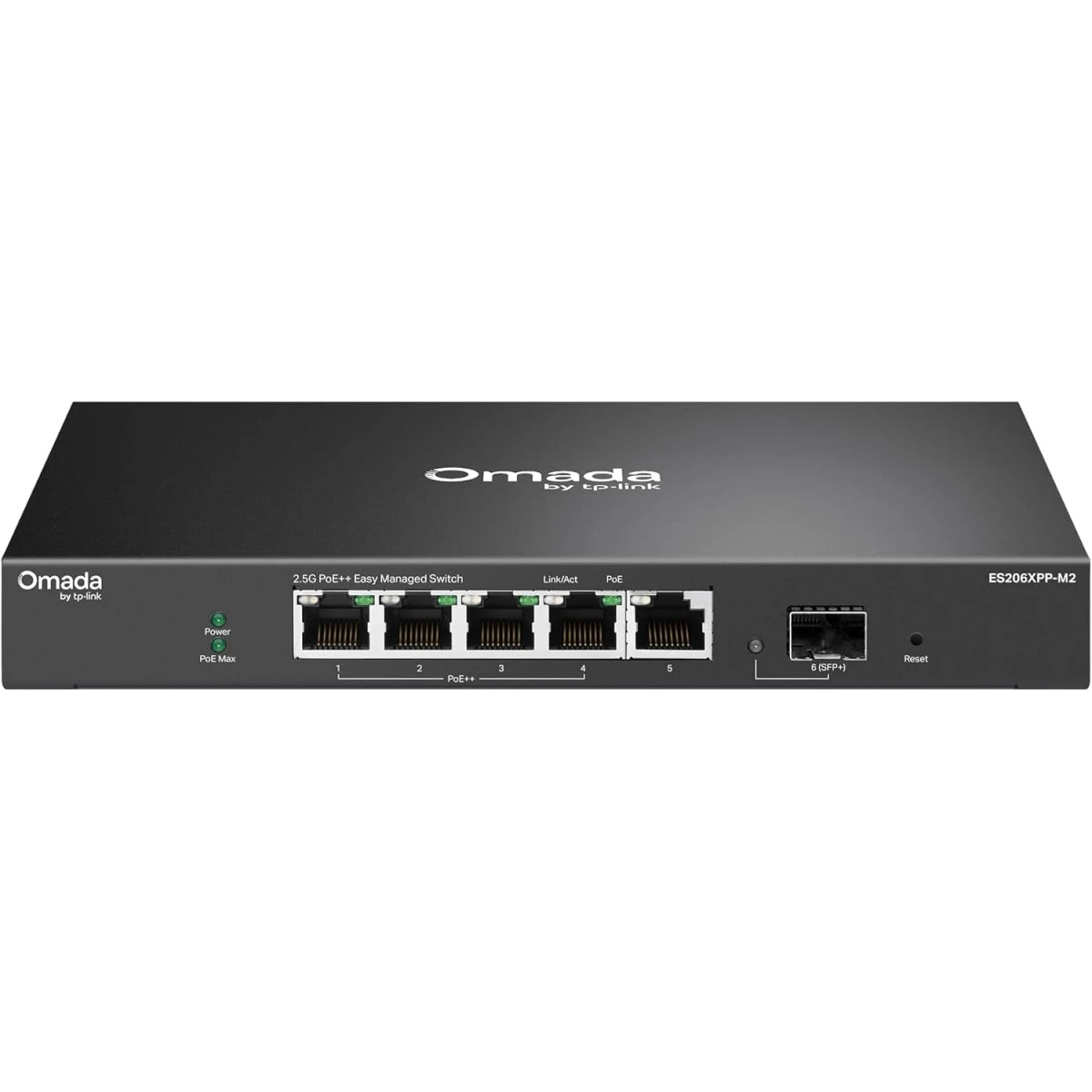

The Omada ES206XPP-M2 is a compa Easy Managed multi-gigabit switch designed for high-speed wired networks and PoE-powered devices. It provides five 2.5 Gbps RJ45 ports, including four PoE++ ports, together with a 10 Gbps SFP+ slot for high-speed uplink connectivity. With a total 120 W PoE budget, up to 90 W available on a single PoE port, fanless operation and support for Omada centralized management, the ES206XPP-M2 is suited to deployments such as Wi-Fi 6/7 access points, network devices and other multi-gigabit environments requiring compa managed connectivity. Key Features Multi-Gigabit Connectivity: Five 2.5 Gbps RJ45 ports plus one 10 Gbps SFP+ slot. 4-Port PoE++: Four RJ45 ports support IEEE 802.3af/at/bt PoE with a total 120 W PoE budget and up to 90 W per port. Easy Managed Networking: Supports VLAN, Port Isolation, QoS, IGMP Snooping and automatic loop prevention. Omada Management: Supports centralized management through compatible Omada controllers, with web and Omada app access. Fanless Design: Silent operation in a durable metal enclosure suitable for desktop or wall mounting. PoE Management Features: Supports Fast PoE, Perpetual PoE and PoE recovery functionality. Technical Specifications Component Specification Omada Model ES206XPP-M2 Produ Type Easy Managed PoE++ Switch RJ45 Ports 5 × 2.5 Gbps RJ45 SFP+ Interface 1 × 10 Gbps SFP+ Slot PoE Ports 4 × 2.5 Gbps RJ45 PoE++ Ports PoE Standards IEEE 802.3af/at/bt Total PoE Budget 120 W Maximum PoE Per Port Up to 90 W Switching Capacity 45 Gbps Packet Forwarding Rate 33.48 Mpps MAC Address Table 16K Packet Buffer 640 KB Jumbo Frame 10 KB Transmission Method Store-And-Forward VLAN MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN Management Web-Based GUI and Omada Centralized Management Cooling Fanless Installation Desktop / Wall Mount Power Supply AC/DC Adapter, 100–240 V AC Input, 53.5 V DC / 2.43 A Output Surge Protection ±6 kV Dimensions 209 × 126 × 26 mm Operating Temperature -5 °C to 40 °C Compatibility & Important Information PoE Compatibility: Four RJ45 ports support IEEE 802.3af, 802.3at and 802.3bt PoE devices; the switch can also conne non-PoE devices. PoE Capacity: The total PoE budget is 120 W, with up to 90 W available from an individual PoE port. Actual available PoE power can vary according to connected devices and environmental conditions. Omada App & Cloud Access: These functions require a compatible Omada Hardware Controller, Cloud-Based Controller or Software Controller. Zero-Touch Provisioning: Requires an Omada Cloud-Based Controller. PoE Recovery: PoE Auto Recovery is supported in standalone mode, while controller mode supports manual PoE Recovery. Package Contents ES206XPP-M2 Switch Power Adapter Power Cord Mounting Feet Installation Guide Please to review Q: How many 2.5 Gbps ports does the Omada ES206XPP-M2 have? A: It has five 2.5 Gbps RJ45 ports, four of which support PoE++. Q: Does the ES206XPP-M2 include a 10 Gbps uplink? A: Yes. It includes one 10 Gbps SFP+ slot. Q: What PoE standards does the switch support? A: The four PoE ports support IEEE 802.3af, 802.3at and 802.3bt PoE. Q: What is the total PoE budget? A: The switch provides a total PoE budget of 120 W, with up to 90 W available on an individual PoE port. Actual available power can vary according to connected devices and environmental conditions. Q: Can the ES206XPP-M2 be centrally managed through Omada? A: Yes. It supports centralized management using compatible Omada Cloud-Based, Hardware or Software Controllers. Q: Does the switch support VLANs? A: Yes. It supports MTU VLAN, Port-Based VLAN and 802.1Q Tag VLAN. Q: Does the ES206XPP-M2 use a cooling fan? A: No. It uses a fanless design for silent operation. Q: Can the switch be wall mounted? A: Yes. Omada specifies support for both desktop and wall-mount installation.
