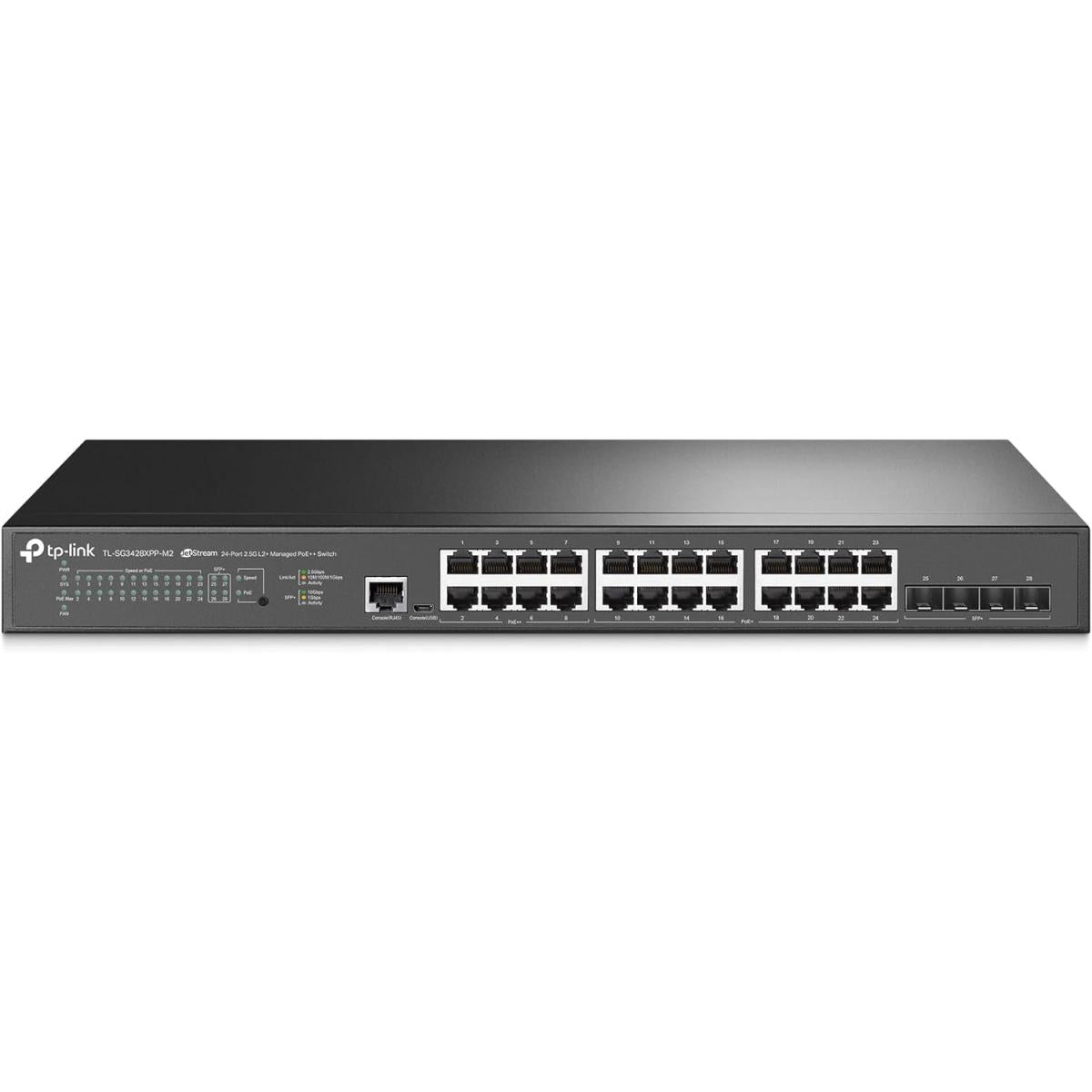

The Omada SG3428XPP-M2 V2 is a multi-gigabit managed PoE++ switch designed for business networks that need high-speed access connectivity and substantial PoE capacity. It provides 24 x 2.5 Gbps PoE++ RJ45 ports alongside four 10 Gbps SFP+ slots, supporting high-bandwidth access points, workstations, servers and other compatible network devices. With a total PoE budget of 770 W, up to 90 W available per PoE++ port, 200 Gbps switching capacity and centralized Omada management, the SG3428XPP-M2 is suited to scalable multi-gigabit deployments. Static routing, VLAN, ACL, QoS, IGMP Snooping, ERPS, OAM and DDM provide additional control for business network design and administration. Key Features 24 x 2.5G PoE++ Ports: Multi-gigabit RJ45 connectivity with IEEE 802.3af/at/bt PoE support and up to 90 W per port. 4 x 10G SFP+ Slots: High-speed fiber uplink connectivity for multi-gigabit network aggregation. 770 W PoE Budget: 200 Gbps Switching Capacity: Supports high-throughput business network deployments with a packet forwarding rate of 148.80 Mpps. Centralized Omada Management: Supports Omada controller-based cloud management alongside standalone web, CLI, SNMP and RMON administration. Business Network Features: Static Routing, VLAN, ACL, QoS, IGMP Snooping, ERPS, OAM and DDM support. Technical Specifications Component Specification Omada by TP-Link Model SG3428XPP-M2 Hardware Version Produ Type Managed Multi-Gigabit PoE++ Switch RJ45 Ports 24 x 2.5 Gbps PoE++ RJ45 SFP+ Slots 4 x 10 Gbps SFP+ Console Ports 1 x RJ45 Console, 1 x Micro-USB Console PoE Standards IEEE 802.3af / 802.3at / 802.3bt PoE Ports Maximum PoE per Port Up to 90 W Total PoE Budget 770 W PoE Features Fast PoE, Perpetual PoE Switching Capacity 200 Gbps Packet Forwarding Rate 148.80 Mpps Packet Buffer 16 Mbit MAC Address Table 32 K Jumbo Frame 9 KB VLAN Up to 4K VLAN Groups, 802.1Q Tagged VLAN Static Routing Up to 48 IPv4 / IPv6 Static Routes Multicast IGMP Snooping, MLD Snooping, MVR Network Features VLAN, ACL, QoS, Link Aggregation, STP, ERPS, OAM, DDM Centralized Management Omada Cloud-Based, Hardware and Software Controllers Standalone Management Web GUI, CLI, SNMP v1/v2c/v3, RMON Zero-Touch Provisioning Supported through Omada Cloud-Based Controller Security 802.1X, AAA/TACACS+, DHCP Snooping, ARP Inspection, IP Source Guard, DoS Defend, Port Security, HTTPS, SSH Surge Protection 6 kV Cooling 3 Fans Mounting Rack Mountable Power Supply 100-240 V AC, 50/60 Hz Dimensions 440 x 330 x 44 mm Operating Temperature -5 to 45 °C Certifications CE, FCC, RoHS Compatibility & Important Information The 24 PoE++ RJ45 ports support standard IEEE 802.3af, 802.3at and 802.3bt powered devices. SG3428XPP-M2 is not compatible with Passive PoE or other non-standard PoE devices. The maximum output of an individual PoE++ port is 90 W, while the total PoE power budget is 770 W. Actual available PoE power can vary according to connected powered devices and environmental conditions. Omada App and cloud-access functions require use of a compatible Omada controller. Zero-Touch Provisioning requires an Omada Cloud-Based Controller. ISP features including ERPS configuration are specified by Omada for standalone mode. Omada recommends using only one SM5310-T module with the SG3428XPP-M2. Package Contents SG3428XPP-M2 Switch Power Cord RJ45 Console Cable Installation Guide Rackmount Kit Rubber Feet Screws Please to review Q: How many 2.5G ports does the Omada SG3428XPP-M2 have? A: It provides 24 x 2.5 Gbps RJ45 ports, and all 24 support PoE++. Q: What is the total PoE budget? A: The total PoE budget is 770 W, with up to 90 W available from an individual PoE++ port. Q: Which PoE standards are supported? A: The switch supports IEEE 802.3af, 802.3at and 802.3bt powered devices. Q: Can it power Passive PoE devices? A: No. Omada explicitly states that SG3428XPP-M2 is incompatible with Passive PoE and other non-standard PoE devices. Q: Does the switch provide 10G uplinks? A: Yes. It has four 10 Gbps SFP+ slots. Q: Can it be managed without an Omada Controller? A: Yes. Standalone management is supported through the web interface, CLI, SNMP and RMON. Controller-based management is also supported. Q: What is the switching capacity? A: The switching capacity is 200 Gbps with a packet forwarding rate of 148.80 Mpps. Q: Can it be installed in a network rack? A: Yes. The SG3428XPP-M2 is rack mountable, and Omada lists a rackmount kit in the package.
