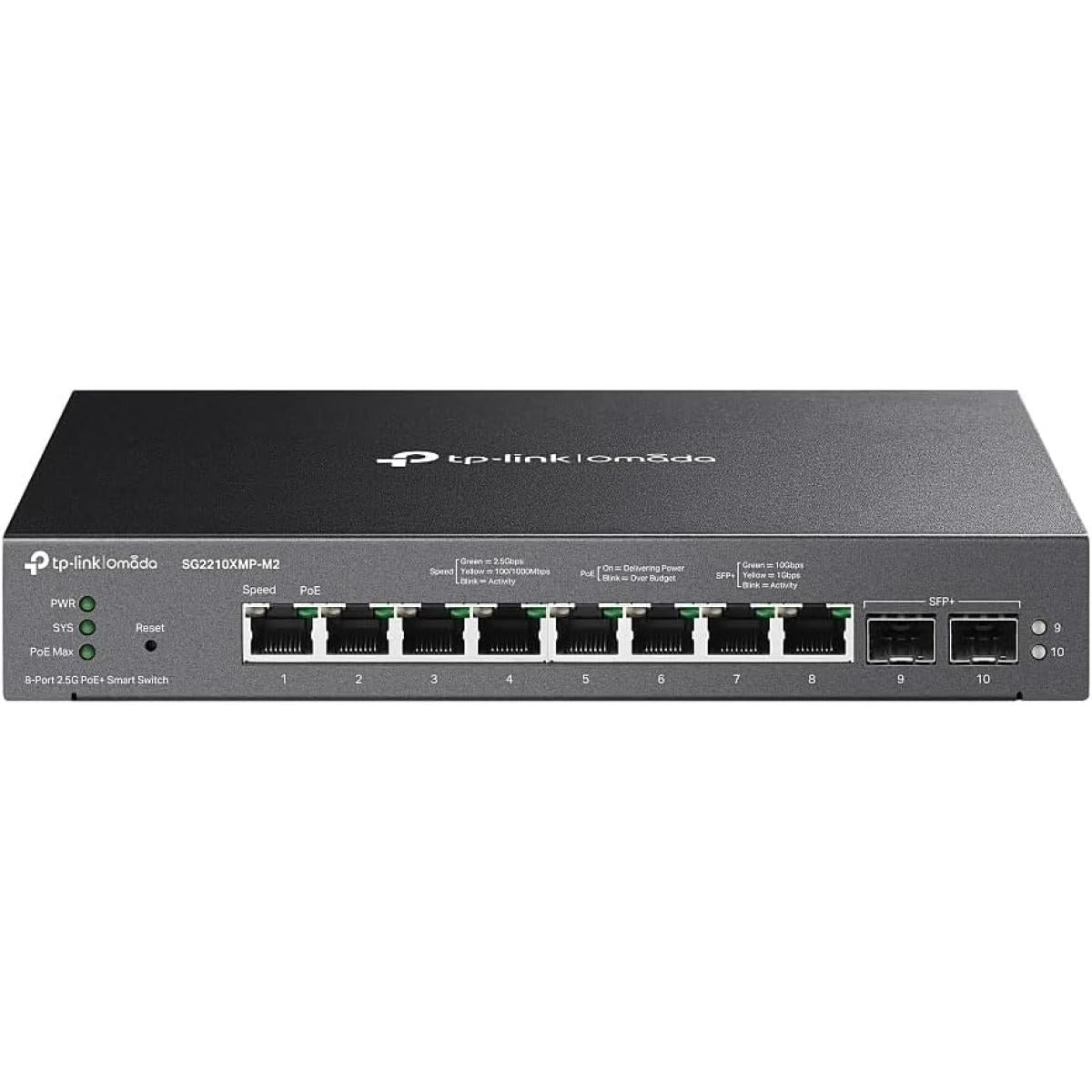

Tp Link Sg2210xmp M2 Omada Multi Gigabit Network Switch, 8 Port 2.5g Poe+ Ports, 160w And 2 Port 10ge Sfp+ Smart Switch

Hardware Features Interface • 8× 100/1000/2500 Mbps Rj45 Poe+ Ports • 2× 10g Sfp+ Slots Fan Quantity Fanless Physical Security Lock Power Supply 53.5vdc/3.37a Power Adapter Poe Ports (rj45) • Standard: 802.3at/af Compliant • Poe+ Ports: 8 Ports • Poe Power Budget: 160 W* Dimensions ( W X D X H ) 8.9 × 5.2 × 1.4 In (226 × 131 × 35 Mm) Mounting Desktop/wall Mounting Max. Power Consumption 180.1 W (110v/60hz) (with 160 W Pd Conneed) Max Heat Dissipation 614.58 Btu/hr (110v/60hz) (with 160 W Pd Conneed) Performance Switching Capacity 80 Gbps Packet Forwarding Rate 59.52 Mpps Mac Address Table 16 K Packet Buffer Memory 12 Mbit Jumbo Frame 9 Kb Software Features Quality Of Service • 802.1p Cos/dscp Priority • 8 Priority Queues • Priority Schedule Mode Sp (stri Priority) Wrr (weighted Round Robin) • Queue Weight Config • Bandwidth Control Port/flow Based Rating Limit • Smoother Performance • Storm Control Multiple Control Modes(kbps/ratio) Broadcast/multicast/unknown Unicast Control L2 And L2+ Features • 32 Ip Interfaces: Support Ipv4/ipv6 Interface • Static Routing: 32 Ipv4/ipv6 Static Routes • Dhcp Server • Dhcp Relay Dhcp Interface Relay Dhcp Vlan Relay • Dhcp L2 Relay • Static Arp • Proxy Arp • Gratuitous Arp • Link Aggregation • Spanning Tree Protocol • Loopback Deteion • 802.3x Flow Control • Mirroring • Device Link Dete Protocol (dldp) • 802.1ab Lldp/ Lldp Med L2 Multicast • 511 Ipv4, Ipv6 Shared Multicast Groups • Igmp Snooping • Multicast Vlan Registration (mvr) • Multicast Filtering • Limited Ip Multicast (256 Profiles And 16 Entries Per Profile) Advanced Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule Vlan • Vlan Group Max 4k Vlan Groups • 802.1q Tagged Vlan • Mac Vlan: 12 Entries • Protocol Vlan • Gvrp • Voice Vlan Access Control List • Support Up To 230 Entries • Time Based Acl • Mac Acl • Ip Acl • Ipv6 Acl • Combined Acl • Rule Operation: Permit/deny • Policy Aion Mirroring Redire Rate Limit Qos Remark • Acl Rules Binding Port Binding Vlan Binding Security • Ip Mac Port Binding • Aaa • 802.1x Port Based Authentication Mac (host) Based Authentication Authentication Method Includes Pap/eap Md5 Mab Guest Vlan Support Radius Authentication And Accountability • Ip/ipv6 Mac Binding 512 Binding Entries Dhcp Snooping Dhcpv6 Snooping Arp Inspeion Nd Deteion Nd Snooping • Ip Source Guard 253 Entries Source Ip+source Mac • Ipv6 Source Guard 183 Entries Source Ipv6 Address+source Mac • Dos Defend • Dhcp Filter • Static/dynamic/permanent Port Security Up To 64 Mac Addresses Per Port • Broadcast/multicast/unicast Storm Control • Port Isolation • Secure Web Management Through Https With Sslv3/tls 1.2 • Secure Command Line Interface (cli) Management With Sshv1/sshv2 • Ip/port/mac Based Access Control Ipv6 • Ipv6 Static Routing And Acl • Ipv6 Dual Ipv4/ipv6 • Ipv6 Interface • Multicast Listener Discovery (mld) Snooping • Ipv6 Neighbor Discovery (nd) • Path Maximum Transmission Unit (mtu) Discovery • Internet Control Message Protocol (icmp) Version 6 • Tcpv6/udpv6 • Ipv6 Applications Dhcpv6 Client Ping6 Tracert6 Telnet(v6) Ipv6 Snmp Ipv6 Ssh Ipv6 Ssl Http/https Ipv6 Tftp Mibs • Mib Ii (rfc1213) • Interface Mib (rfc2233) • Ethernet Interface Mib (rfc1643) • Bridge Mib (rfc1493) • P/q Bridge Mib (rfc2674) • Rmon Mib (rfc2819) • Rmon2 Mib (rfc2021) • Radius Accounting Client Mib (rfc2620) • Radius Authentication Client Mib (rfc2618) • Remote Ping, Traceroute Mib (rfc2925) • Support Tp Link Private Mib Management Features Omada App Yes. Requiring The Use Of Omada Hardware Controller, Omada Cloud Based Controller, Or Omada Software Controller. Centralized Management • Omada Cloud Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requiring The Use Of Omada Hardware Controller, Omada Cloud Based Controller, Or Omada Software Controller. Zero Touch Provisioning Yes. Requiring The Use Of Omada Cloud Based Controller. Management Features • Web Based Gui • Command Line Interface (cli) Through Telnet • Snmpv1/v2c/v3 • Snmp Trap/inform • Rmon (1,2,3,9 Groups) • Sdm Template • Dhcp/bootp Client • Dual Image, Dual Configuration • Cpu Monitoring • Cable Diagnostics • Eee • Sntp • System Log Others Certification Ce, Fcc, Rohs Package Content • Sg2210xhp M2 Switch • Power Adapter • Quick Installation Guide • Rubber Feet System Requirements Microsoft® Windows® 98se, Nt, 2000, Xp, Vista™ Or Windows 7/8/10/11, Mac® Os, Netware®, Unix® Or Linux. Environment • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: 40–70 ℃ ( 40–158 ℉) • Operating Humidity: 10–90% Rh Non Condensing • Storage Humidity: 5–90% Rh Non Condensing Tp Link 8 Port 10/100mbps Desktop Ethernet Splitter Plug And Play Fanless Quiet White Trendnet Tk 207k 2 Port Usb Kvm Switch & Cable Kit 2048 X 1536 Resolution Device Monitoring, Auto Scan For Windows And Linux Trendnet Tk 407k 4 Port Usb Kvm Switch Kit Vga & Usb Conneions Cabling Included Control Up To 4 Computers For Window, Linux, & Mac Tp Link Tl Sg1024d 24 Port Gigabit Ethernet Unmanaged Switch Plug And Play Fanless Desktop/rackmount Tp Link Tl Sg1016d 10/100/1000mbps 16 Port Ethernet Unmanaged Switch Plug And Play Metal Desktop/rackmount & Fanless Tp Link Tl Sf1005d 5 Port 10/100 Mbps Fast Ethernet Switch Desktop Ethernet Splitter Ethernet Hub Plug & Play Fanless Quiet Desktop Design Green Technology Unmanaged Please To Review
