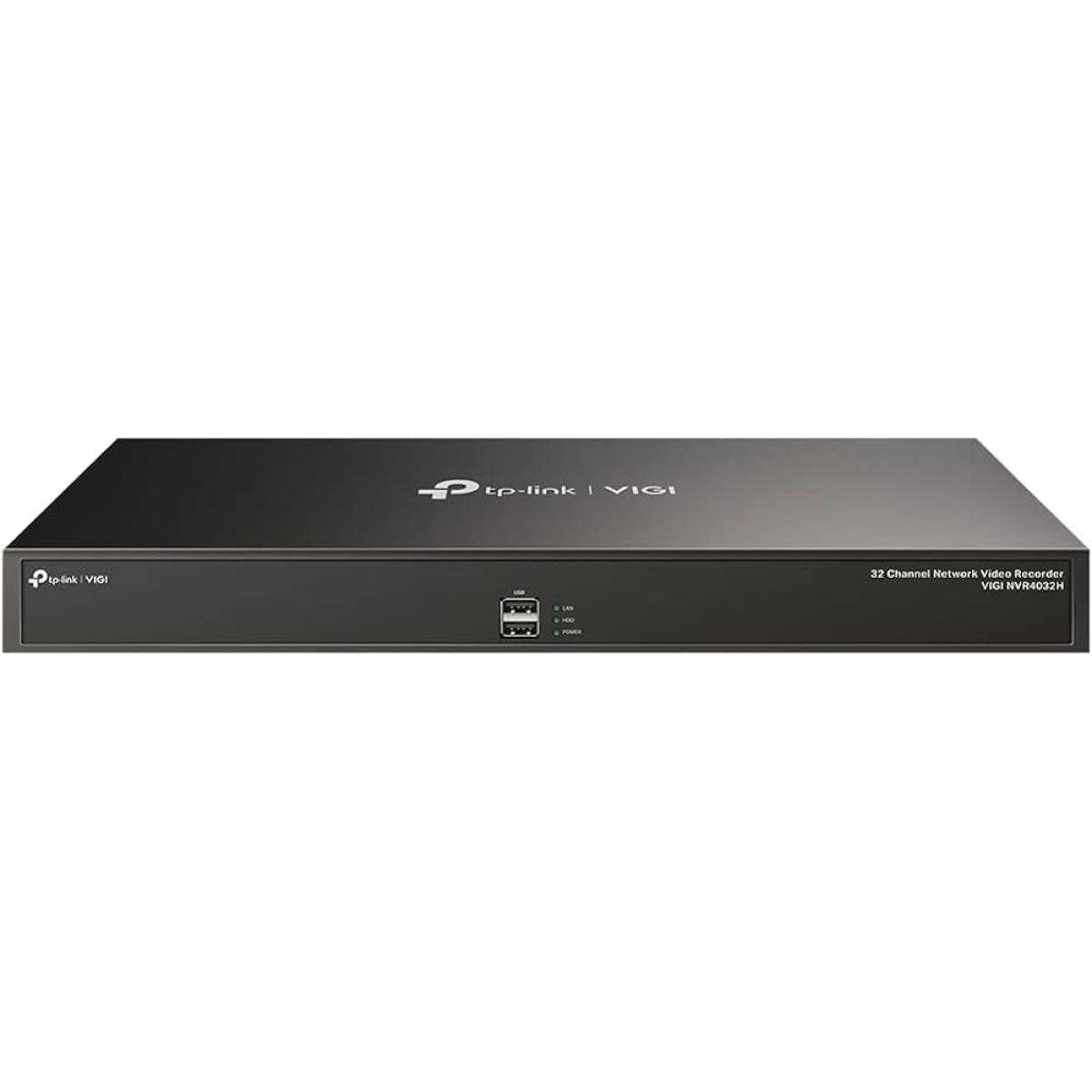

TP-Link VIGI NVR 4032H 32-Channel Network Video Recorder 16ch (2MP) / 8ch (4MP) 320Mbps Bandwidth up to 4x HDD 40TB HDMI & VGA

VIDEO AND AUDIO IP Video Input 32-Channel Incoming Bandwidth 320 Mbps Outgoing Bandwidth 320 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Video Output Mode HDMI/VGA Independent Output Multi-View Display 1/4/6/8/9/16/25/32/36 DECODING Audio Compression G.711A/G.711U/G.726 Decoding Format H.265+/H.265/ H.264+/H.264 Video Compression H.265+/H.265/ H.264+/H.264 Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Synchronous Playback 16-Channel Capability 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps) RECORD MANAGEMENT Record Mode • Manual Recording • Scheduling Recording • Motion Detection Recording Playback Mode • Instant Playback • Regular Playback • Tag Playback • Event Playback Backup Mode • Regular Backup • Video Clip Backup Playback Function • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off NETWORK Protocol UPnP (Plug and Play), NTP (Network Timing) Android, iOS Incoming Bandwith 320 Mbps Outgoing Bandwidth 320 Mbps Web Browser Chrome (57+), Firefox (52+), Edge (91+) Interoperability ONVIF, CGI EXTERNAL INTERFACE Network Interface 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface USB Interface USB Interface Audio Interface 1, Audio In; 1, Audio Out Alarm In/Out 16/4 Serial Interface 1, RS232 Power 1× AC Jack Reset Button Speaker N/A eSATA N/A HDMI VGA HARD DISK SATA 4 SATA Interfaces Capacity Up to 10 TB Capacity for Each HDD ALARM General Alarm Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection Anomaly Alarm Exception, Fan Exception Alarm Linkage Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm NETWORK MANAGEMENT Network Protocols UPnP (Plug and Play), NTP (Network Timing) Interoperability ONVIF, CGI Android, iOS Browser Chrome (57+), Firefox (52+), Edge (91+) GENERAL Storage Temperature -40–70 °C Storage Humidity 10%~90% RH Non-Condensing Package Contents VIGI Network Video Recorder Mouse Installation Guide Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks Mounting Brackets, Screws and Rubber Feet Working Temperature -10–55 °C Working Humidity 10%~90% RH Non-Condensing Dimensions( W X D X H ) 440 × 330 × 44 mm External Power Supply 100-240 VAC, 50 to 60HZ, 1.5A Net Weight 4.0 Kg Gross Weight 5.2 Kg Power Supply 100-240 VAC, 50 to 60HZ, 1.5A Power Consumption 5 W (Without Disk) 48 W (With Disk) Certifications CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI RECORD PLAYBACK Record Mode Manual Recording, Scheduling Recording, Motion Detection Recording Playback Mode Instant Playback, Regular Playback, Tag Playback, Event Playback Backup Mode Regular Backup, Video Clip Backup Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off VIDEO/IMAGE IP Video Input 32-Channel Multi-View Dispaly 1/4/6/8/9/16/25/32/36 Video Output Mode HDMI/VGA Independent Output Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA Output Resolution 1 Chann Your Name Your Review Note: HTML is not translated! Rating Bad Good Continue TP-Link VIGI NVR 2016H 16 Channel Network Video Recorder 4K HDMI 16MP H.265+ ONVIF Plug & Play Two-Way Audio Remote Monitoring From the manufacturer... 149 Customers who bought this item also bought ARCTIC MX-4 Thermal Grease Arctic ACTCP00002B For CPU or GPU (4.0 g) Optimised Packaging Saves Resources , Better than Liquid Metal , Easy to Apply , Safe Application , 5/5 ASUS ROG Strix 750 Fully Modular 80+ Gold 750W 0dB Axial Tech Fan 750W 80 Plus Gold certified for energy efficiency, built with 100% Japanese capacitors for stability 169 149 ASUS ROG Thor 1000P 1000w 80+ Platinum II Fully-Modular w/ OLED Panel PSU Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.ROG heat 299 229 ASUS TUF Gaming B550-PLUS AMD B550 Addressable Gen 2 RGB AMD AM4 and PCIe 4.0 socket: The perfe pairing for Zen 3 Ryzen 5000 and 3rd Gen AMD Ryzen CPUs.Rob 139 adjustItemSize('#AlsoBought_DYC1pUV3', {"1740":{"items_per_row":4,"items_spacing":0},"1530":{"items_per_row":4,"items_spacing":20},"1160":{"items_per_row":3,"items_spacing":30},"900":{"items_per_row":3,"items_spacing":30},"600":{"items_per_row":1,"items_spacing":10}}); Information About Us Delivery Information Privacy Policy Terms & Conditions Customer Service Sitemap Service Centers Extras Specials My Account My Account Order History Wishlist Newsletter Delivery Info 24 Hours for Amman and Alzarqa, 48 Hours for all other cities Information About Us Delivery Information Privacy Policy Terms & Conditions Customer Service Sitemap Service Centers Extra Specials My Account My Account Order History Wishlist Newsletter image image Wasfi Al-Tal Street (Gardens) Pizza Hut Building – No. 28 Amman 11184, Jordan Commercial Registration Number (CR): 121125 VAT Registration Number (VAT No.): WhatsApp: [email protected] Working Time: Saturday - Wednesday : 8:00 AM - 6:30 PM Thursday : 8:00 AM - 3:00 PM Friday: Closed Chat with Us Copyright © 2026 For Computers | Web Development SEO DSTeck.com if (typeof window.tb_wishlist_label != 'undefined') { Array.prototype.forEach.call(document.querySelectorAll('a.wishlist_total, li.wishlist_total > a > .tb_text'), function(el) { var holder = document.createElement('span'), number = document.createTextNode(window.tb_wishlist_label.replace(/[^0-9]/g, '')); holder.appendChild(number); holder.classList.add('tb_items'); el.appendChild(holder); });} $(window).load(function() { $(document.body).trigger("sticky_kit:recalc");});$(document).ready(function() { compare.fixTotal();});$(document).ready(function() { compare.fixTotal(); // 1. Define the pages where this logic should run // Added .tb_page_product_manufacturer for manufacturer pages const isTargetPage = $('body').is('.tb_page_product_category, .tb_page_product_manufacturer_info'); if (isTargetPage) { // 2. Clone the button only if we are on the corre page $( ".bf-btn-show" ).clone(true).prependTo( ".tb_wt_products_system" ); // 3. Target the button const filterButton = document.querySelector('#content .bf-btn-show'); if (filterButton) { filterButton.innerText = 'Filter'; filterButton.addEventListener("click", function() { $(".bf-panel-wrapper").toggleClass('bf-opened'); $("body").toggleClass('bf-non-scrollable'); }); } } // No 'else' block here, so nothing prints to the console on other pages.});$(window).scroll(function() { if($(window).scrollTop() > 50) { $('.bf-btn-show').addClass('top-filter'); } else { $('.bf-btn-show').removeClass('top-filter'); }});$(document).ready(function() { $('.radio input').change(function() { $(this).parents('.radio').siblings('.radio').removeClass('selected'); if (this.checked) { $(this).parents('.radio').addClass('selected'); } });});function GetURLParameter(sParam){ var sPageURL = window.location.search.substring(1); var sURLVariables = sPageURL.split('&'); for (var i = 0; i < sURLVariables.length; i++) { var sParameterName = sURLVariables[i].split('='); if (sParameterName[0] == sParam) { return sParameterName[1]; } }}//----------------// fireworks//----------------/*$(window).load(function() { $('body').append(''); setTimeout(function() { $('.pyro').remove(); }, 60000);});*///---------------- scroll_to_top (); #oosn_info_text, #opt_info{padding-top:0px;color:#F00;}#msgoosn{color:green;}.notify_form_success{color:green;}.notify_form_warning{color:orange;}.notify_form_error{color:red;}.notify-button { background-color: #EE6514 !important;}.notify-button:hover { background-color: #BB4A07 !important;}.notify-info-block { padding-right: 25px;} The produ is currently Out-of-Stock. Enter your email address below and we will notify you as soon as the produ is available. Name Email Comments Subscribe to this produ function notifypop(i) { $("#pid").val(i), $("#msgoosn").html(""), $.magnificPopup.open({ items: {src: "#notifyform"}, type: "inline", removalDelay: 800, midClick: !0, callbacks: { beforeOpen: function() { this.st.mainClass = "mfp-3d-unfold" } } })} // anwar: remove this to fix the problem when removing a produ from the cart, it was not refreshing//var cart = {var cart_ignore_this_var = {'add': function(product_id, quantity) {$.ajax({url: 'index.php?route=checkout/cart/add',type: 'post',data: 'product_id=' + product_id + '&quantity=' + (typeof(quantity) != 'undefined' ? quantity : 1),dataType: 'json',beforeSend: function() {$('#cart > button').button('loading');},complete: function() {$('#cart > button').button('reset');},success: function(json) {$('.alert, .text-danger').remove();if (json['hberror']){if (json['hberror']['oosn']) { notifypop(json['hberror']['oosn']);return false;}} if (json['redire']) {location = json['redire'];}if (json['success']) {$('#content').parent().before('');// Need to set timeout otherwise it wont update the totalsetTimeout(function () {$('#cart > button').html(' ' + json['total'] + '');}, 100);$('html, body').animate({ scrollTop: 0 }, 'slow');$('#cart > ul').load('index.php?route=common/cart/info ul li');}}});},'update': function(key, quantity) {$.ajax({url: 'index.php?route=checkout/cart/edit',type: 'post',data: 'key=' + key + '&quantity=' + (typeof(quantity) != 'undefined' ? quantity : 1),dataType: 'json',beforeSend: function() {$('#cart > button').button('loading');},complete: function() {$('#cart > button').button('reset');},success: function(json) {// Need to set timeout otherwise it wont update the totalsetTimeout(function () {$('#cart > button').html(' ' + json['total'] + '');}, 100);if (getURLVar('route') == 'checkout/cart' || getURLVar('route') == 'checkout/checkout') {location = 'index.php?route=checkout/cart';} else {$('#cart > ul').load('index.php?route=common/cart/info ul li');}},error: function(xhr, ajaxOptions, thrownError) {alert(thrownError + "\r\n" + xhr.statusText + "\r\n" + xhr.responseText);}});},'remove': function(key) {$.ajax({url: 'index.php?route=checkout/cart/remove',type: 'post',data: 'key=' + key,dataType: 'json',beforeSend: function() {$('#cart > button').button('loading');},complete: function() {$('#cart > button').button('reset');},success: function(json) {// Need to set timeout otherwise it wont update the totalsetTimeout(function () {$('#cart > button').html(' ' + json['total'] + '');}, 100);if (getURLVar('route') == 'checkout/cart' || getURLVar('route') == 'checkout/checkout') {location = 'index.php?route=checkout/cart';} else {$('#cart > ul').load('index.php?route=common/cart/info ul li');}},error: function(xhr, ajaxOptions, thrownError) {alert(thrownError + "\r\n" + xhr.statusText + "\r\n" + xhr.responseText);}});}} #oosn_info_text, #opt_info{padding-top:0px;color:#F00;}#msgoosn{color:green;}.notify_form_success{color:green;}.notify_form_warning{color:orange;}.notify_form_error{color:red;}.notify-button { background-color: #EE6514 !important;}.notify-button:hover { background-color: #BB4A07 !important;}.notify-info-block { padding-right: 25px;} The produ is currently Out-of-Stock. Enter your email address below and we will notify you as soon as the produ is available. Name Email Comments Subscribe to this produ function notifypop(i) { $("#pid").val(i), $("#msgoosn").html(""), $.magnificPopup.open({ items: {src: "#notifyform"}, type: "inline", removalDelay: 800, midClick: !0, callbacks: { beforeOpen: function() { this.st.mainClass = "mfp-3d-unfold" } } })} // anwar: remove this to fix the problem when removing a produ from the cart, it was not refreshing//var cart = {var cart_ignore_this_var = {'add': function(product_id, quantity) {$.ajax({url: 'index.php?route=checkout/cart/add',type: 'post',data: 'product_id=' + product_id + '&quantity=' + (typeof(quantity) != 'undefined' ? quantity : 1),dataType: 'json',beforeSend: function() {$('#cart > button').button('loading');},complete: function() {$('#cart > button').button('reset');},success: function(json) {$('.alert, .text-danger').remove();if (json['hberror']){if (json['hberror']['oosn']) { notifypop(json['hberror']['oosn']);return false;}} if (json['redire']) {location = json['redire'];}if (json['success']) {$('#content').parent().before('');// Need to set timeout otherwise it wont update the totalsetTimeout(function () {$('#cart > button').html(' ' + json['total'] + '');}, 100);$('html, body').animate({ scrollTop: 0 }, 'slow');$('#cart > ul').load('index.php?route=common/cart/info ul li');}}});},'update': function(key, quantity) {$.ajax({url: 'index.php?route=checkout/cart/edit',type: 'post',data: 'key=' + key + '&quantity=' + (typeof(quantity) != 'undefined' ? quantity : 1),dataType: 'json',beforeSend: function() {$('#cart > button').button('loading');},complete: function() {$('#cart > button').button('reset');},success: function(json) {// Need to set timeout otherwise it wont update the totalsetTimeout(function () {$('#cart > button').html(' ' + json['total'] + '');}, 100);if (getURLVar('route') == 'checkout/cart' || getURLVar('route') == 'checkout/checkout') {location = 'index.php?route=checkout/cart';} else {$('#cart > ul').load('index.php?route=common/cart/info ul li');}},error: function(xhr, ajaxOptions, thrownError) {alert(thrownError + "\r\n" + xhr.statusText + "\r\n" + xhr.responseText);}});},'remove': function(key) {$.ajax({url: 'index.php?route=checkout/cart/remove',type: 'post',data: 'key=' + key,dataType: 'json',beforeSend: function() {$('#cart > button').button('loading');},complete: function() {$('#cart > button').button('reset');},success: function(json) {// Need to set timeout otherwise it wont update the totalsetTimeout(function () {$('#cart > button').html(' ' + json['total'] + '');}, 100);if (getURLVar('route') == 'checkout/cart' || getURLVar('route') == 'checkout/checkout') {location = 'index.php?route=checkout/cart';} else {$('#cart > ul').load('index.php?route=common/cart/info ul li');}},error: function(xhr, ajaxOptions, thrownError) {alert(thrownError + "\r\n" + xhr.statusText + "\r\n" + xhr.responseText);}});}} (function(){function c(){var b=a.contentDocument||a.contentWindow.document;if(b){var d=b.createElement('script');d.innerHTML="window.__CF$cv$params={r:'a0591afa8a352891',t:'MTc4MDQzMTA2Nw=='};var a=document.createElement('script');a.src='/cdn-cgi/challenge-platform/scripts/jsd/main.js';document.getElementsByTagName('head')[0].appendChild(a);";b.getElementsByTagName('head')[0].appendChild(d)}}if(document.body){var a=document.createElement('iframe');a.height=1;a.width=1;a.style.position='absolute';a.style.top=0;a.style.left=0;a.style.border='none';a.style.visibility='hidden';document.body.appendChild(a);if('loading'!==document.readyState)c();else if(window.addEventListener)document.addEventListener('DOMContentLoaded',c);else{var e=document.onreadystatechange||function(){};document.onreadystatechange=function(b){e(b);'loading'!==document.readyState&&(document.onreadystatechange=e,c())}}}})();
