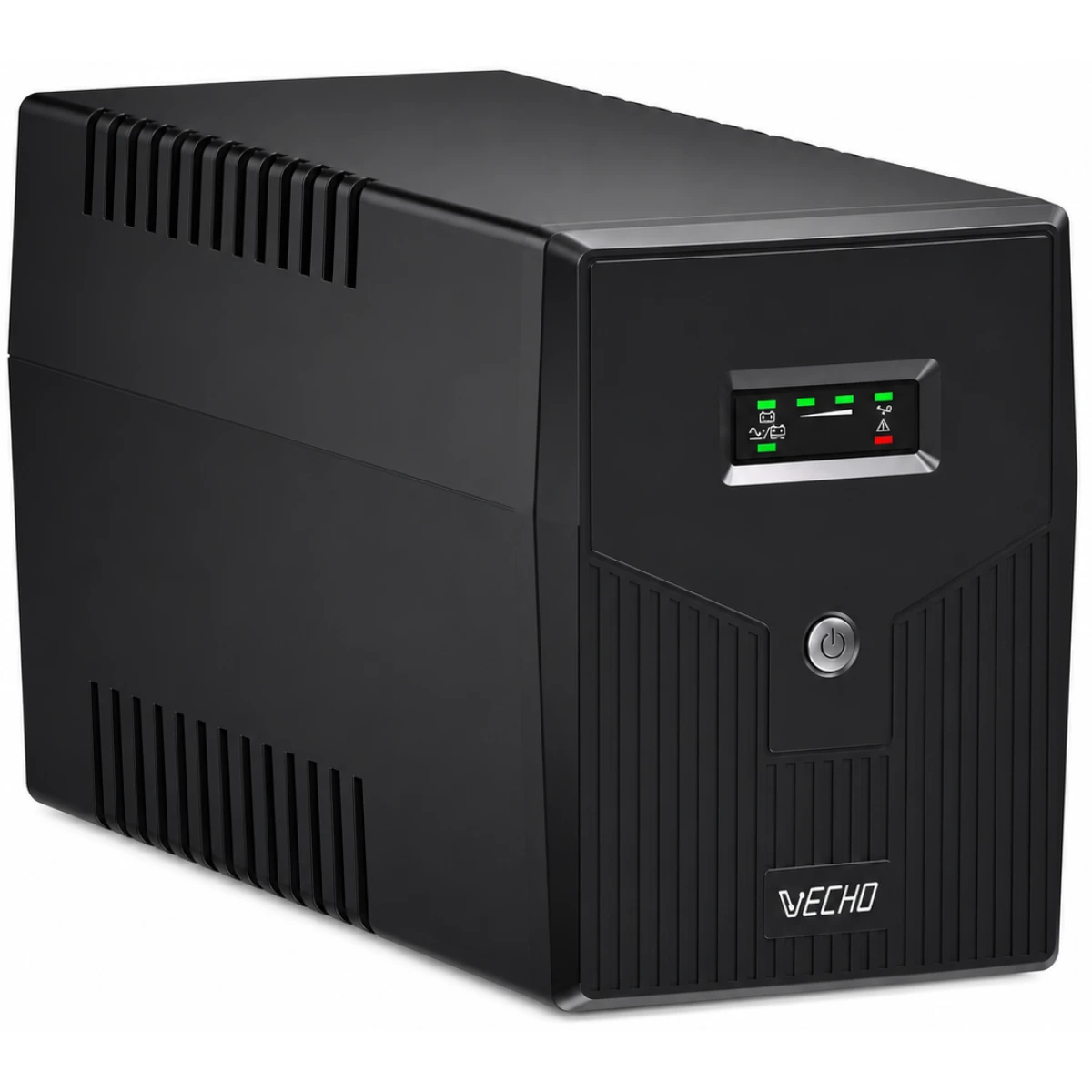

The VECHO VEC-LT1200VA-1272 is a line-interactive uninterruptible power supply designed for personal computer installations and compa working environments. It provides a rated capacity of 1200 VA / 720 W and delivers simulated sinewave output during battery operation. Its integrated boost-and-buck automatic voltage regulation helps stabilize a wide 140–300 VAC input range. The UPS also supports cold start, automatic restart when AC power recovers, off-mode charging and intelligent battery recharging. Key Features 1200 VA / 720 W Capacity: Provides power protection within the specified apparent-power and active-power limits. Line-Interactive Operation: Uses simulated sinewave output while operating from battery power. Automatic Voltage Regulation: Two boost stages and one buck stage help stabilize incoming AC voltage. Wide Input Range: Supports 140–300 VAC input at 50/60 Hz with automatic frequency sensing. Dual-Battery Configuration: Uses two 12 V, 7 Ah batteries with a typical recharge time of 6–8 hours to 90% capacity. Integrated Protection: Includes short-circuit, overload, overcharge and over-discharge protection. Technical Specifications Component Specification VECHO Model VEC-LT1200VA-1272 Produ Type Line-Interactive UPS Capacity 1200 VA / 720 W Nominal Input Voltage 230 VAC Operating Voltage Range 140–300 VAC Operating Frequency 50/60 Hz, auto sensing Battery-Mode Voltage Regulation ±10% Battery-Mode Frequency 50/60 Hz ±1 Hz Transfer Time Typical 4–8 ms; 13 ms maximum Battery-Mode Waveform Simulated sinewave Battery Voltage 12 VDC Battery Configuration 7 Ah × 2 Recharge Time 6–8 hours to recover 90% capacity Voltage Regulation Two boost stages and one buck stage AVR Operating Functions Cold start, auto restart, off-mode charging and generator compatibility Alarm Conditions Battery mode, low battery, overload, battery replacement and fault Protection Short circuit, overload, overcharge and over-discharge protection Operating Humidity 0–90% RH at 0–40°C, non-condensing Noise Level Less than 45 dB Dimensions 353 × 149 × 162 mm Weight 8.4 kg Compatibility & Important Information Connected equipment should remain within both the 1200 VA apparent-power rating and the 720 W active-power rating. The UPS provides a simulated sinewave output during battery operation. The produ family is offered with LED or LCD panel selections, different output socket configurations and optional USB or RS232 communication with RJ11/RJ45 protection. Produ photographs, display type, rear sockets and communication connections should match the exa version stocked by . Please to review Q: What is the capacity of the VECHO VEC-LT1200VA-1272? A: It has a rated capacity of 1200 VA / 720 W. Q: What type of UPS is this model? A: It is a line-interactive UPS with boost-and-buck automatic voltage regulation. Q: What input voltage range does it support? A: Its specified operating input range is 140–300 VAC, with a nominal input voltage of 230 VAC. Q: What waveform does it provide during battery operation? A: The UPS provides simulated sinewave output while operating from its batteries. Q: What battery configuration is used in the 1200 VA model? A: The VEC-LT1200VA-1272 uses two 12 V, 7 Ah batteries. Q: How long does the battery system take to recharge? A: The typical recharge time is 6–8 hours to recover 90% battery capacity. Q: Can the UPS start without mains power? A: Yes. It supports a cold-start function that allows it to start without an AC power supply. Q: Are the communication ports included with every version? A: USB or RS232 communication and RJ11/RJ45 protection are optional features within the produ family and depend on the selected version.
